Bidirectional Current Transducer S764

$251.00

View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



  • Isolated Measurement
  • Open Loop/ Hall Effect Design
  • ±1.0% Accuracy
  • 0.75” Diameter Thru-hole
  • Low Power Consumption 10mAdc Max
  • Reverse Polarity Protection
  • 1m-sec Response (10% to 90%)
  • Transient Protection ±60V (T <5ms)
  • 8 Standard Current Ranges

Product Description

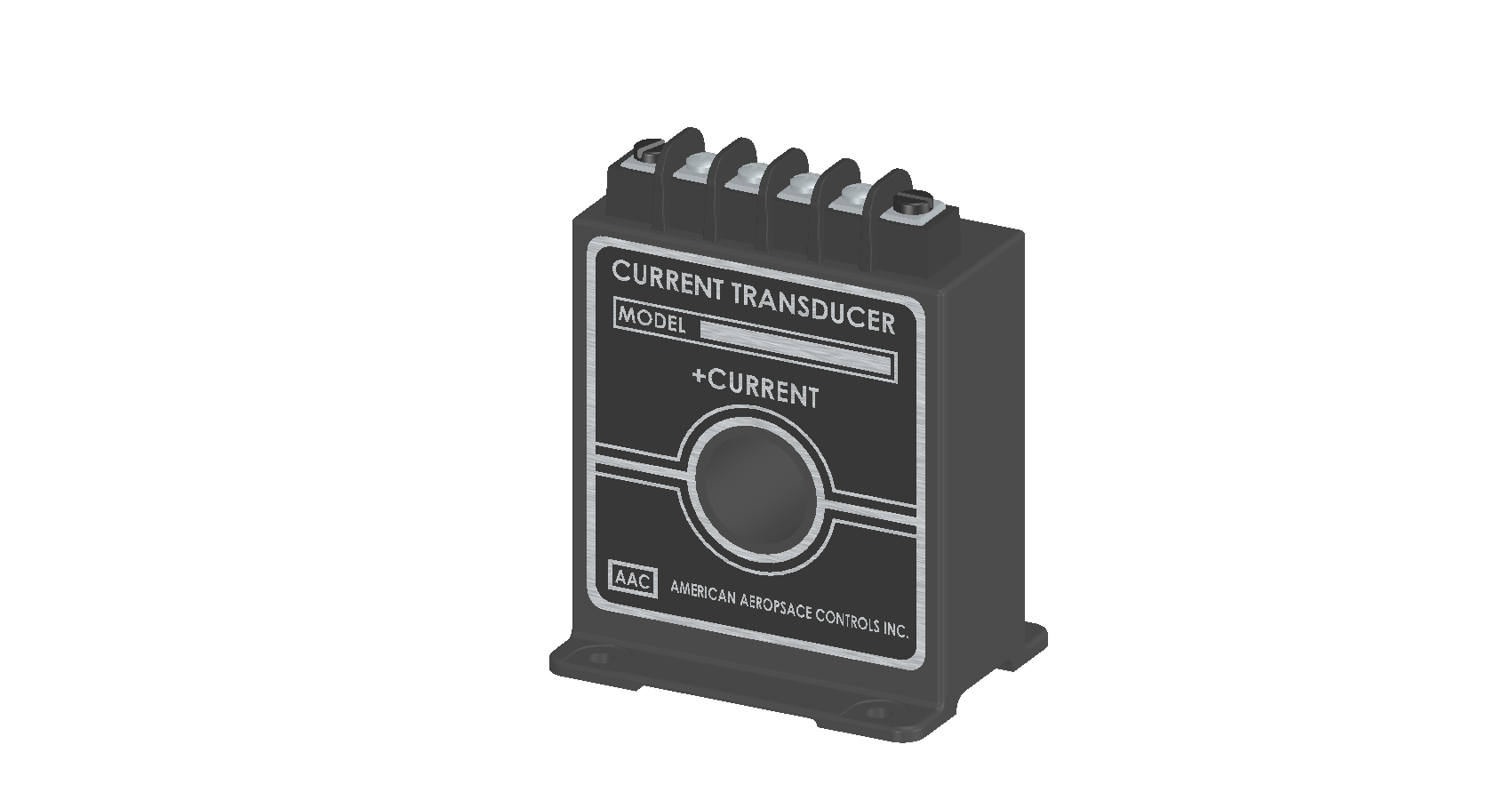

Model S764 Bidirectional Current Transducer provides an isolated 0 to +5Vdc output proportional to the DC input current. The transducers have an input current range of ±20Adc to ±100Adc, with a frequency range from DC to 350Hz and the transducers withstand, without performance degradation or damage, a continuous overload of ±2000Adc.

The S764 Series delivers performance accuracy over a temperature range from -40°C to +85°C, operates with a supply voltage from +12 to +36Vdc, are low powered and produce the specified out within 1m-second. The unit’s molded construction, with the internal components conformal coated creates an economical and light weight transducer.

The S764 Bidirectional Current Transducer comes standard with a barrier interface and a 0.75”thru-hole.

  • Laboratory Test Equipment Monitoring
  • Automation Control Monitoring
  • Power Monitoring for Recycling and Scrap Equipment

Additional information

Weight 5 lbs
Dimensions 3 × 3 × 2 in
Current Range

, , , , , , ,

Measurement

,

Input

Interface

Output

Supply Voltage

Housing

Housing Material

Input Diameter

Supply Type

Frequency Range

DC to 350Hz

Current Drain

10mAdc Max

Response

1m-second

  • Additional Info: Weight 10 oz. Max
  • Attitude – works in any position
  • Output Short Circuit Protected
  • Molded Plastic housing meets UL Flammability Rating 94V-O
