- Isolated Measurement
- Closed Loop/ Hall Effect Design
- ±0.5% Accuracy
- 1u-second Response (10% to 90%)
- 1.38” Diameter Thru-hole
- Reverse Polarity Protection
- Moisture and Humidity Resistant

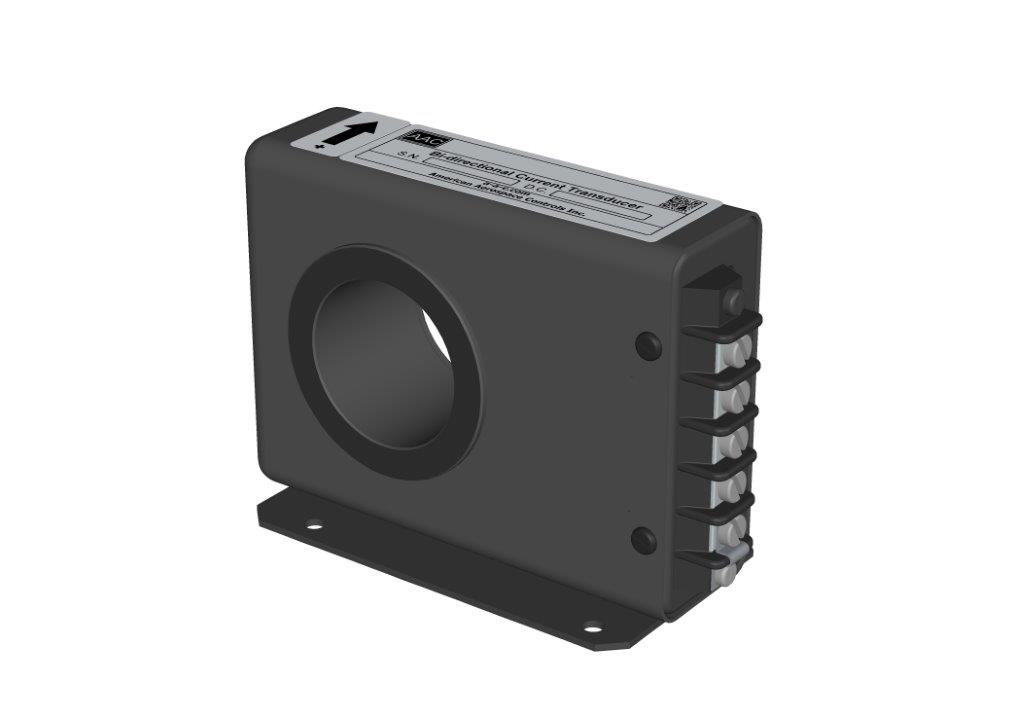

Bidirectional Current Transducer 943A
$985.00 – $1,021.00
Product Description
Model 943A Bidirectional Current Transducer provides an isolated 0 to ±5Vdc output proportional to the DC input current. The transducers have an input current range from ±100A to ±1000A and the transducers withstand, without performance degradation or damage, a continuous overload of ±5000Adc.
The 943A Series delivers high performance accuracy over a temperature range from -55°C to +85°C and measures input current with a frequency range from DC to 350kHz. The sensors operate with a supply voltage of ±15Vdc ±1Vdc and produce the applicable output within 1u-second. The unit’s powder coated aluminum housing, with the internal components encapsulated creates a rugged and durable transducer, withstanding environments of moisture, humidity, vibration, shock and altitude.
The 943A Bidirectional Current Transducer comes standard with a 1.38” (3.51 cm) thru-hole and are available with a barrier or connector interface, with the connector options available with mating connectors.
- Lab Test Equipment
- Traction Motor Monitoring
- Bidirectional Power System Monitoring
Additional information
| Weight | 12 oz |
|---|---|
| Dimensions | 3 × 3 × 2 in |
| Input | |
| Measurement | |
| Current Range | ±1000A, ±100A, ±200A, ±300A, ±400A, ±500A, ±600A, ±750A, ±800A |
| Output | |
| Supply Voltage | |
| Input Diameter | |
| Interface | |
| Housing | |
| Housing Material | |
| Supply Type |
- Attitude: Works in any position.
- Mate Connector: TYPE PT06A-10-6S or equivalent
