- Isolated Measurement
- Two Wire Loop Powered
- Mill-Amp Sensing
- ±0.5% Accuracy (±1.0% Accuracy for 5 mA & 10 mA, 0.75% Accuracy 20 mA)
- 50 milli-second Response (10% to 90%)
- 0.75” Diameter Thru-hole
- Reverse Polarity Protection
- Moisture and Humidity Resistant
- 10 Standard Current Ranges (10 milli-amp sensing ranges)

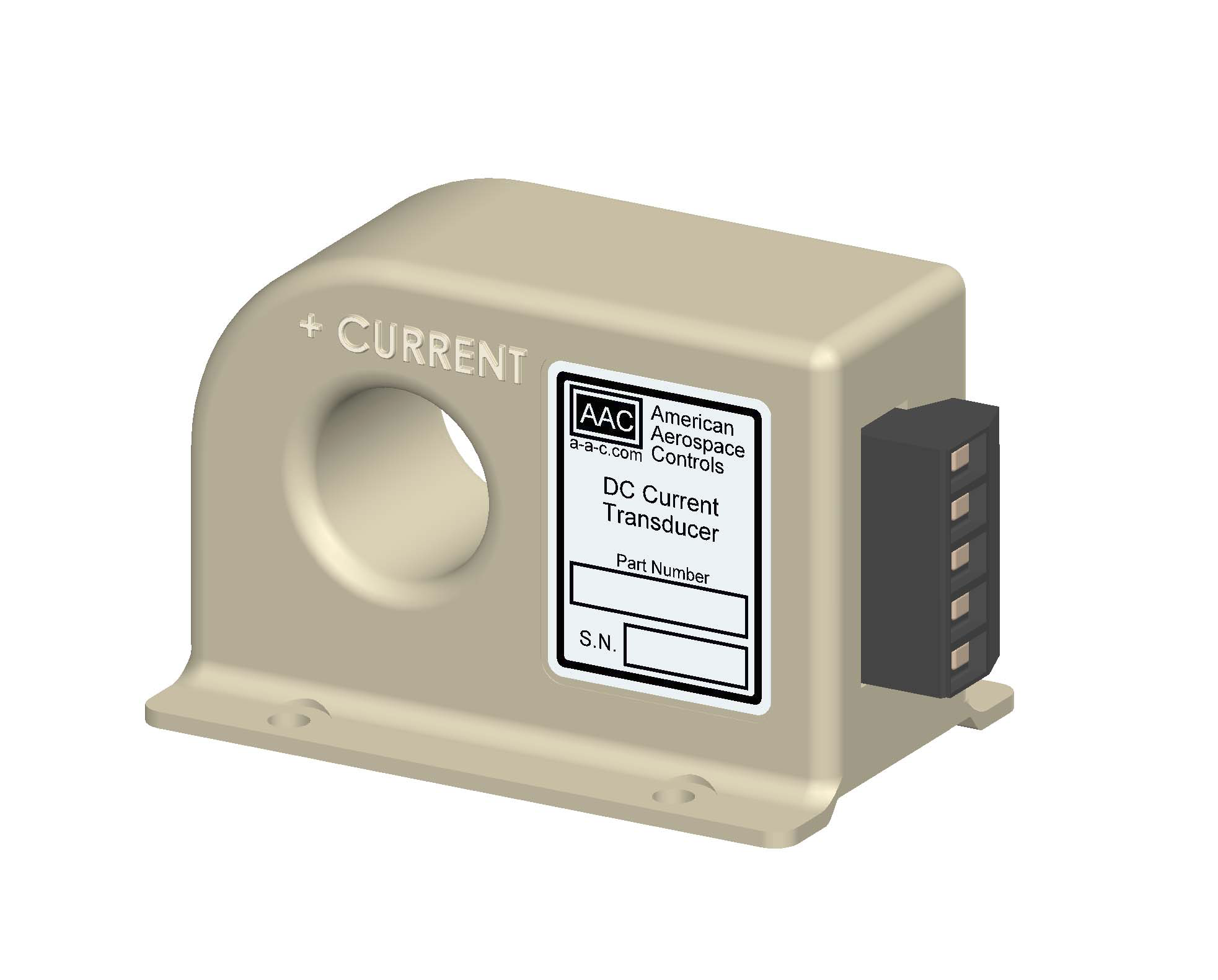

DC Current Transducer 915
$420.00 – $456.00
Product Description
Model 915 Series DC Current Transducer provides an isolated 4-20mAdc output proportional to the DC input current. The transducers are operated in a two wire loop power configuration, with an input current range from +5mAdc to +2Adc and the transducers withstand, without performance degradation or damage, a continuous overload of +25Adc.
The 915 Series delivers high performance accuracy over a temperature range from -40°C to +85°C, the transducer’s operate with a supply voltage from +16Vdc to +34Vdc and are fast responding. The unit’s molded construction and internal epoxy encapsulation creates a durable transducer, withstanding environments of moisture, humidity, vibration and shock.
The 915 DC Current Transducers are light weight and are available with a barrier, connector or d-sub connector interface, with the connector and d-sub connector options available with mating connectors.
- DC Ground Leakage Current Monitoring
- GFI Applications
- Lab Test Equipment
Additional information
Weight | 7 oz |
---|---|
Dimensions | 3 × 3 × 2 in |
Current Range | |
Measurement | |
Input | |
Interface | |
Output | |
Supply Voltage | |
Housing | |
Housing Material | |
Input Diameter | |
Supply Type |
- Max, Attitude: Works in any position.
- Mate Connector: 6282-5SG-311 MFG Conxall. Mate D-Sub Connector: 3322 MFG. SPC Technology
- Specified accuracy includes the combined worst case effects of Zero Offset, Temperature, Hysteresis, Supply Swings and Current Cable Positioning.
- Recommended mounting hardware; #6 screw, #6 split lock washer and #6 flat washer. Torque Maximum 10 in-lb.
