- Isolated Measurement
- Milli-Amp Current Sensing
- ±1.0% Accuracy
- Military Temperature Range
- Moisture and Humidity Resistant
- High Overload Tolerance
- 8 Standard Current Ranges
Bidirectional Current Transducer 905B
$465.00 – $501.00
SKU: 905B
Category: Bidirectional Current Transducers
Tags: Aerospace and Defense, Industrial, Power/Energy, Rail/Locomotive
Product Description
Model 905B Bidirectional Current Transducer provides an isolated 0 to ±5Vdc output proportional to the DC input current, with a range from ±50mAdc to ±5Adc.
The 905B Series delivers performance accuracy over a temperature range from -55°C to +85°C and operates with a supply voltage from ±15Vdc ±1Vdc. The unit’s powder coated steel housing, with the internal components encapsulated creates a rugged and durable transducer, withstanding environments of moisture, humidity, vibration, shock and altitude.

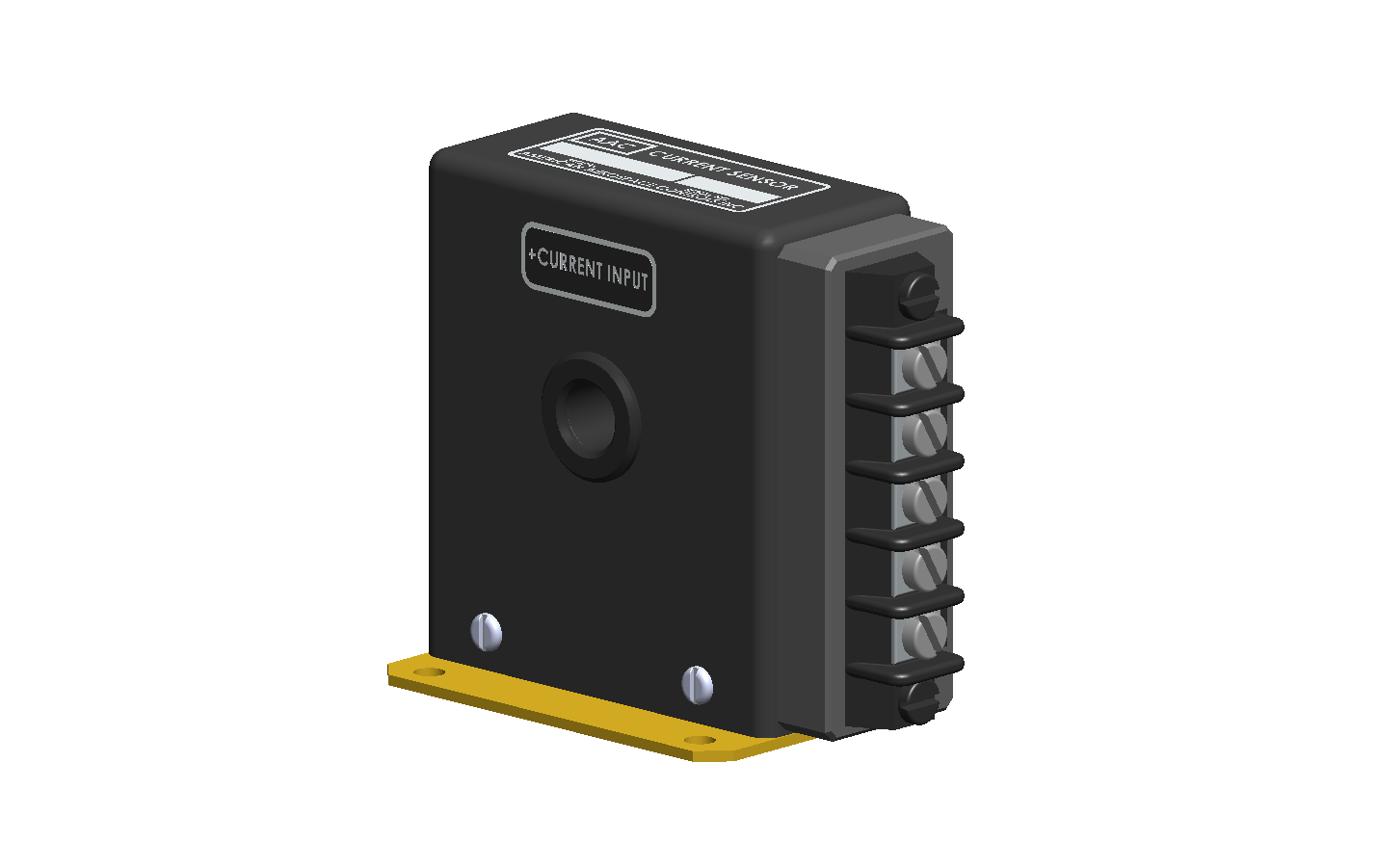

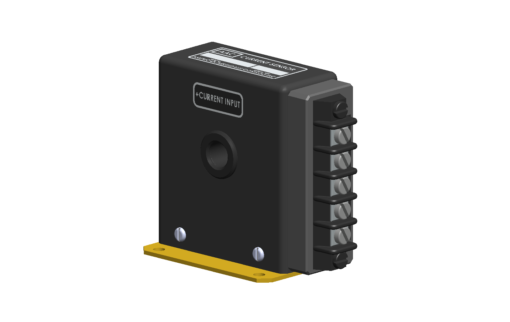

The 905B Bidirectional Current Transducers are available with a header, barrier or connector interface, with the connector option available with mating connector.
- High Voltage Power Supply
- High Voltage Measurements
- DC Ground Leakage Current Monitoring
- GFI Applications
- Bidirectional Power System Monitoring
Additional information
Weight | 20 oz |
---|---|
Dimensions | 3 × 3 × 2 in |
Input | |
Measurement | |
Current Range | |
Output | |
Supply Type | |
Housing Material | |
Input Diameter | |
Supply Voltage | |
Housing | |
Interface |
- Attitude: Works in any position.
- Operating: Sea Level to 60,000ft.
- Mate Connector: TYPE PT06A-10-6S or equivalent mating connector.
