- Open Loop/ Hall Effect Design
- Easy Connectivity/ Simple Utilization
- Removable Yoke
- Isolated Measurement
- 4-20mA Output
- ±1.0% Accuracy
- 2.20” (5.59cm) Diameter Thru-hole
- Case UL Flammability Rating 94V-0
- Reverse Polarity
- 9 Standard Current Ranges
Product Description

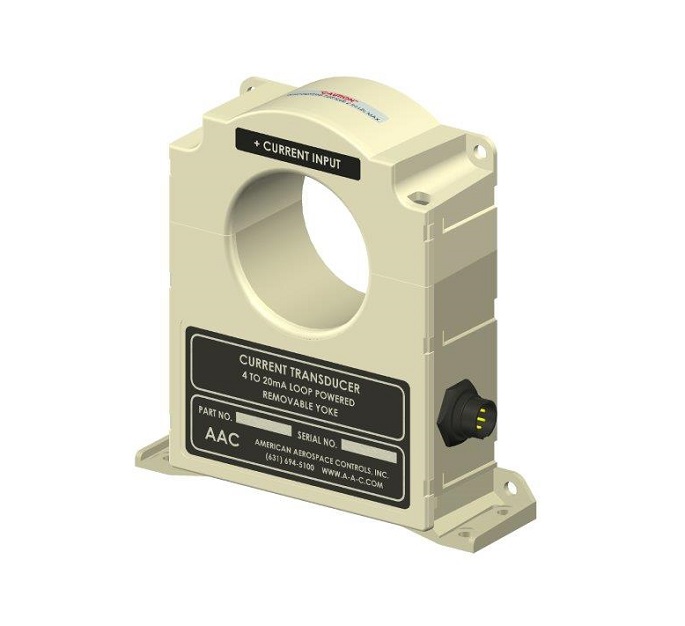

Model S1061 Bidirectional Current Transducer with removable yoke, provides an isolated 4-20mA DC output proportional to the DC input current. The transducers are operated in a two wire loop power configuration, with an input current range from ±1000Adc to ±5000Adc and the transducers withstand, without performance degradation or damage, a continuous overload of ±10 kAdc.
The S1061 Series delivers performance accuracy over a temperature range from -40°C to +85°C, operates with a supply voltage from +12Vdc to +32Vdc and are low powered. The unit’s molded construction, with the internal components encapsulated, creates a durable transducer, withstanding environments of moisture, humidity and shock.
The S1061 Bidirectional Current Transducer comes standard with a 2.20” (5.59cm) removable yoke, allowing for uninterrupted operation installation, which makes this transducer ideal for existing or retro-fit applications, as well as moveable multi-point monitoring. The transducers are available with a connector interface, with mating connector.
- Industrial Equipment
- Automation Equipment
- Fuel Management Systems
- Traction Motor
- Rail Ground Fault Measurements
Additional information
| Weight | 24 oz |
|---|---|
| Dimensions | 3 × 3 × 2 in |
| Input Diameter | |
| Supply Voltage | |
| Housing Material | |
| Housing | |
| Supply Type | |
| Measurement | |
| Current Range | 1000A, 1500A, 2000A, 2500A, 3000A, 3500A, 4000A, 5000A, 6000A |
| Output | |
| Interface | |
| Input |
- Attitude: Works in any mounting position
- Transient Protection ±80V (T <5ms).
