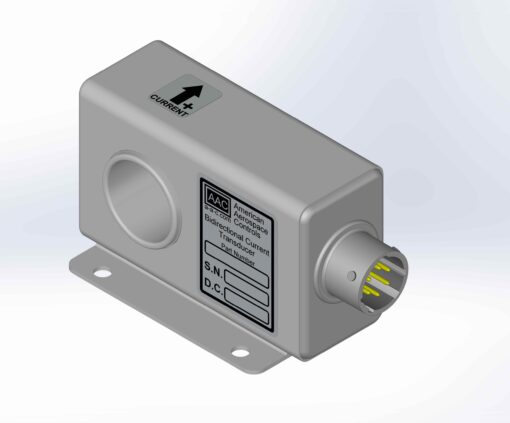

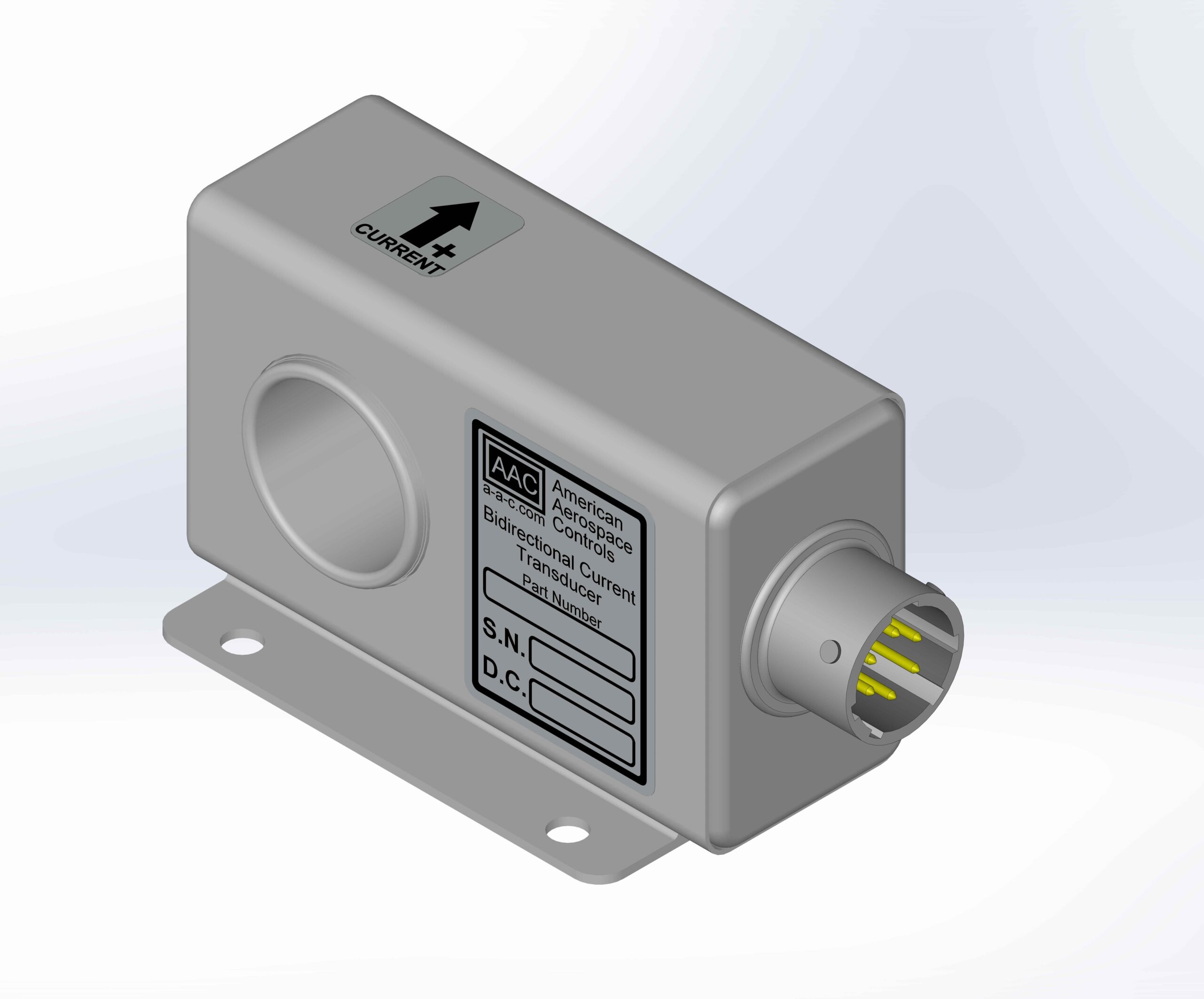

Bidirectional Current Transducer S1177

$2,003.00

View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



  • Isolated Measurement
  • Closed Loop Design
  • ±0.5% Accuracy
  • 500u-second Response (10% to 90%)
  • 0.75” Diameter Thru-hole
  • Frequency DC to 1kHz
  • Reverse Polarity & Short Circuit Protection
  • Moisture and Humidity Resistant
  • Altitude: Operating to 70,000Ft
  • Shock: 50g, 11ms Half Pulse Sine
  • Random Vibe: MIL-STD-801E, Cat 5, Proc. 1 (12.5 GRMS)
  • DO 160 Power Input, Section 16, Cat B
  • -55°C to +85°C Operating Temperature Range

Product Description

Model S1177 Bidirectional Current Transducer provides an isolated 0 to ±5Vdc output proportional to the DC input current.  The transducers have an input current range from ±50Adc to ±700Adc and the transducers withstand, without performance degradation or damage, a continuous overload of ±10KAdc.

The S1177 Series delivers performance accuracy (0.5%) over a temperature range from -55°C to +85°C and measures input current with a frequency range from DC to 1KHz.  The transducer’s operate with a supply voltage from +16Vdc to +40Vdc and produces the specified output within 500µ-second.  The transducer’s brass alloy housing, is hermetically sealed, with the internal components encapsulated, withstanding without performance or mechanical degradation environments of moisture, humidity, vibration, shock and altitude.  In addition, the S1177 Series is qualified hardware for DO-160E Section 16, Category B (Power Input).

The S1177 Bidirectional Current Transducers are light weight (9oz. max), are available in 9 standard current ranges and come standard with a connector interface, available with mating connectors.

  • Unmanned and Manned Flight Power Systems Monitoring
  • Bidirectional Power System Monitoring
  • Battery Charge and Discharge Monitoring

Additional information

Weight 9 oz
Dimensions 3 × 3 × 2 in
Current Range

, , , , , , , , ,

Housing

Frequency Range

DC to 1KHz

Housing Material

Input

Input Diameter

Interface

Measurement

Output

Supply Type

Supply Voltage

  • Attitude: Works in any position.
  • Terminal Identification: A. Supply Voltage (+)  B. Supply (RTN)  C. Output (RTN)   D. Output Signal (+)
