- Isolated Measurement
- Open Loop/ Hall Effect Design
- ±1.0% Accuracy
- 1.38” Diameter Thru-hole
- Reverse Polarity Protection
- Moisture and Humidity Resistant
Bidirectional Current Transducer 944
$372.00 – $408.00
Product Description
Model 944 Bidirectional Current Transducer provides an isolated 0 to ±5Vdc output proportional to the DC input current. The sensors have an input current range from ±600Adc to ±2000Adc and the transducers withstand, without performance degradation or damage, a continuous overload of ±5000Adc.
The 944 Series delivers performance accuracy over a temperature range from -55°C to +85°C, measures input current with a frequency range from DC to 20kHz and operates with a supply voltage of ±15Vdc ±1Vdc. The unit’s powder coated aluminum exterior, with internal epoxy encapsulation, creates a rugged and durable sensor, withstanding environments of moisture, humidity, vibration, shock and altitude.

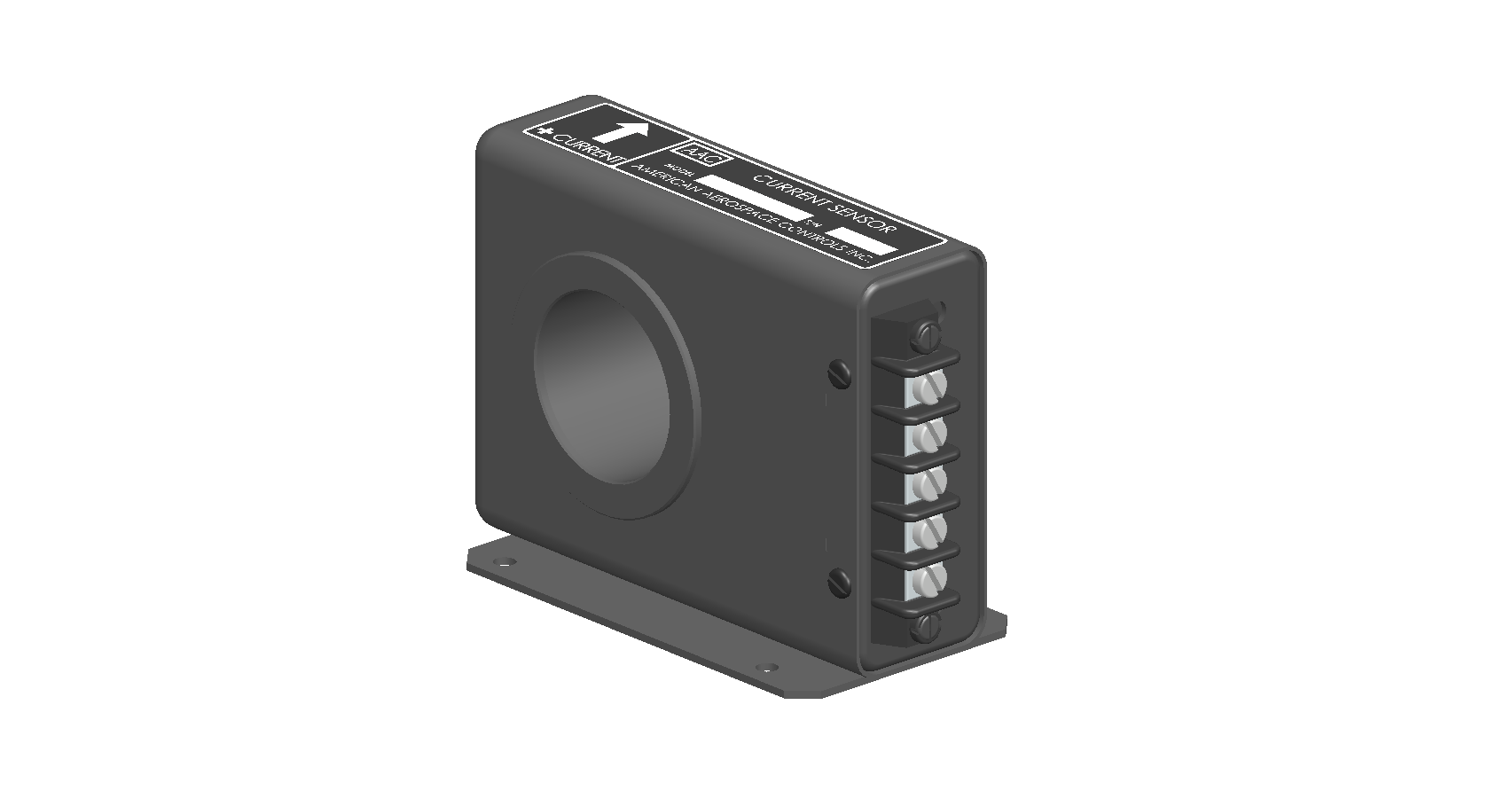

The 944 Bidirectional Current Transducer comes standard with a 1.38” (3.51 cm) thru-hole and are available with a barrier or connector interface, with the connector options available with mating connectors.
- Lab Test Equipment
- Traction Motor Monitoring
- Switching Power System Monitoring
Additional information
Weight | 24 oz |
---|---|
Dimensions | 3 × 3 × 2 in |
Input | |
Measurement | |
Current Range | |
Output | |
Supply Type | |
Housing Material | |
Input Diameter | |
Supply Voltage | |
Housing | |
Interface | |
Frequency Range | DC to 20kHz |
- Attitude: Works in any position.
- Mate Connector: TYPE PT06A-10-6S or equivalent
