Bidirectional Current Transducer 9000


View 3D Image PDF

(note: requires 3D viewer)


Download Specifications

(note: requires Adobe Reader)


  • Open Loop/ Hall Effect Design
  • Removable Yoke
  • 1.50” Diameter Thru-hole
  • Isolated Measurement
  • ±1.0% Accuracy
  • Reverse Polarity & Short Circuit Protection
  • 8 Standard Current Ranges

Product Description

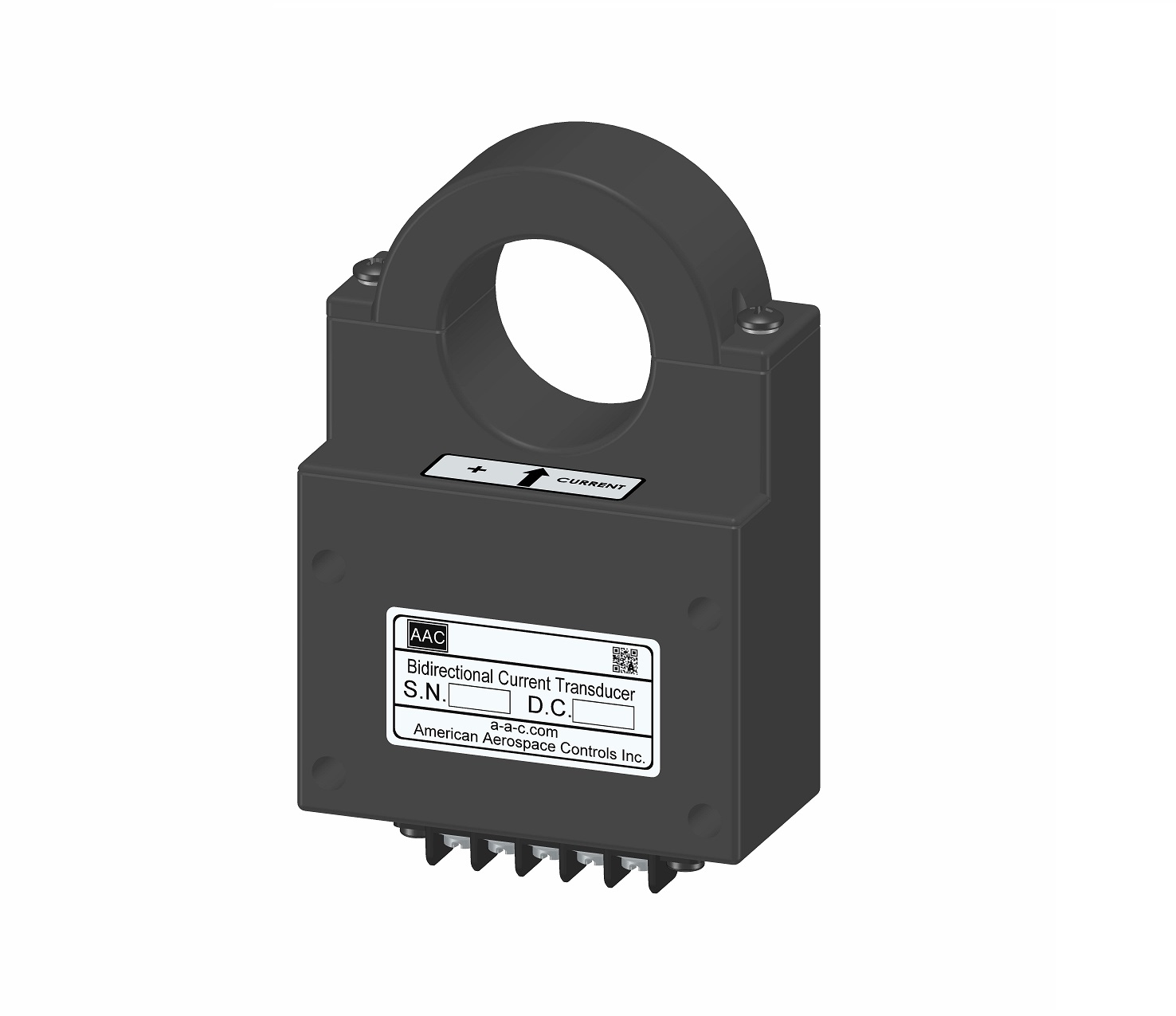

Model 9000 Bidirectional Current Transducer, with removable yoke, provides an isolated 0 to ±5Vdc output proportional to the DC input current. The transducers have an input current range from ±150Adc to ±2500Adc, and the transducers withstand, without performance degradation or damage, a continuous unlimited overload.

The 9000 Series delivers performance accuracy over a temperature range from -25°C to +75°C and operate with a supply voltage from ±15Vdc ±1Vdc.  The unit’s molded construction and internal epoxy encapsulation creates a durable transducer.

The 9000 Bidirectional Current Transducercomes standard with a 1.50” (3.81cm) removable yoke, allowing for uninterrupted operation installation, which makes this transducer excellent for existing or retro-fit applications, as well as moveable multi-point monitoring.  The transducers are available with a barrier or connector interface, with the connector option available with mating connector.

  • Rail Traction Motor Monitoring
  • Industrial Equipment Monitoring
  • Lab Test Equipment
  • Bidirectional Power System Monitoring

Additional information

Weight 14 oz
Dimensions 3 × 3 × 2 in
Input Diameter

Supply Voltage


Housing Material

Supply Type



Current Range

, , , , , , ,





  • Attitude: Works in any position.
  • Mate Connector: PT02E-10-6P-023 or equivalent PT06A-10-6S-424.
