DC Voltage Transducer S1060

$545.00

View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



  • 0 to +5Vdc Output
  • Optical isolation
  • Operating temperature from -40°C to +85°C
  • 0.5% accuracy over temperature
  • Measurement proportional to the absolute value of input
  • Polarity protected
  • Low power operation (17mA Max)
  • 500µ-sec Response

Product Description

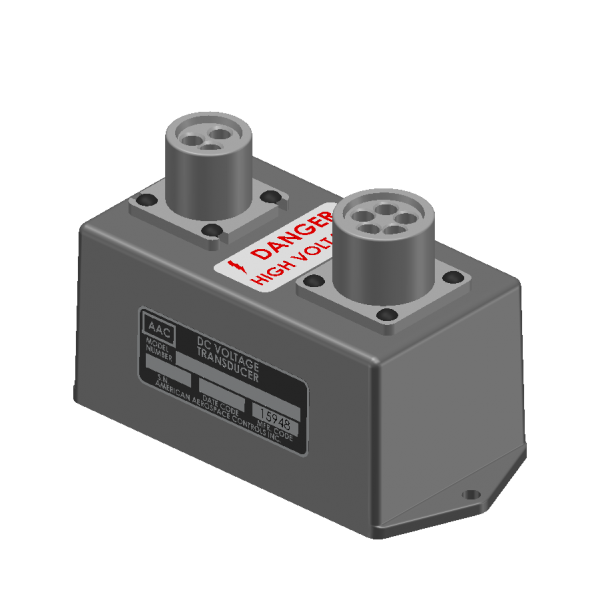

Model S1060 DC Voltage Transducer features an effective, accurate and reliable solution to measure DC voltage. It produces a fully isolated 0 to +5Vdc output (absolute polarity sensing) proportional to the input voltage.  The transducer has an input voltage range from ±10V to ±2000V, with a 4.5kV AC isolation and can withstand without performance failure or degradation, an overload transient of 6kVdc for 100µ-sec.

The S1060 Series delivers high accuracy (±0.5%)  over a temperature range of -40°C to +85°C, operates with a supply voltage from +14Vdc to +32Vdc, is low powered and fast responding.  The unit’s molded construction and internal epoxy encapsulation creates a very durable transducer, withstanding the environments of moisture, humidity, vibration and shock.

The S1060 DC Voltage Transducer comes standard with a dual connector interface, with mating connectors and pins for easy installation.

  • Traction Motor Measurements
  • Lab & Test Setup Verification Equipment
  • Generator Output Monitoring

Additional information

Weight 20 lbs
Dimensions 3 × 3 × 2 in
Housing Material

Supply Type

Supply Voltage

Housing

Output

Measurement

Interface

Input

Voltage Range

100V, 10V, 1200V, 1500V, 150V, 2000V, 300V, 500V, 50V, 60V, 750V, 75V

0 to 100% Humidity

20g Shock/ 10g @ 5-200Hz Vibration
