AC Current (RMS) Transducer 1080


View 3D Image PDF

(note: requires 3D viewer)


Download Specifications

(note: requires Adobe Reader)


  • Isolated Measurement
  • Low Output Ripple
  • True RMS Sensing
  • Ā±0.25% Accuracy
  • 0.75ā€ Diameter Thru-hole
  • Reverse Polarity Protection
  • Moisture & Humidity Resistant
  • 14 Standard Current Ranges

Product Description

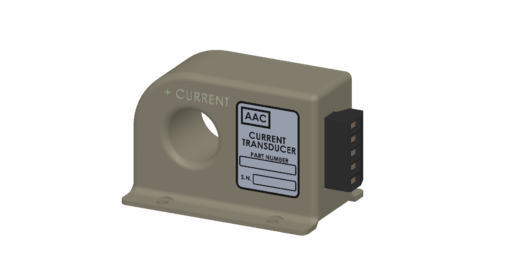

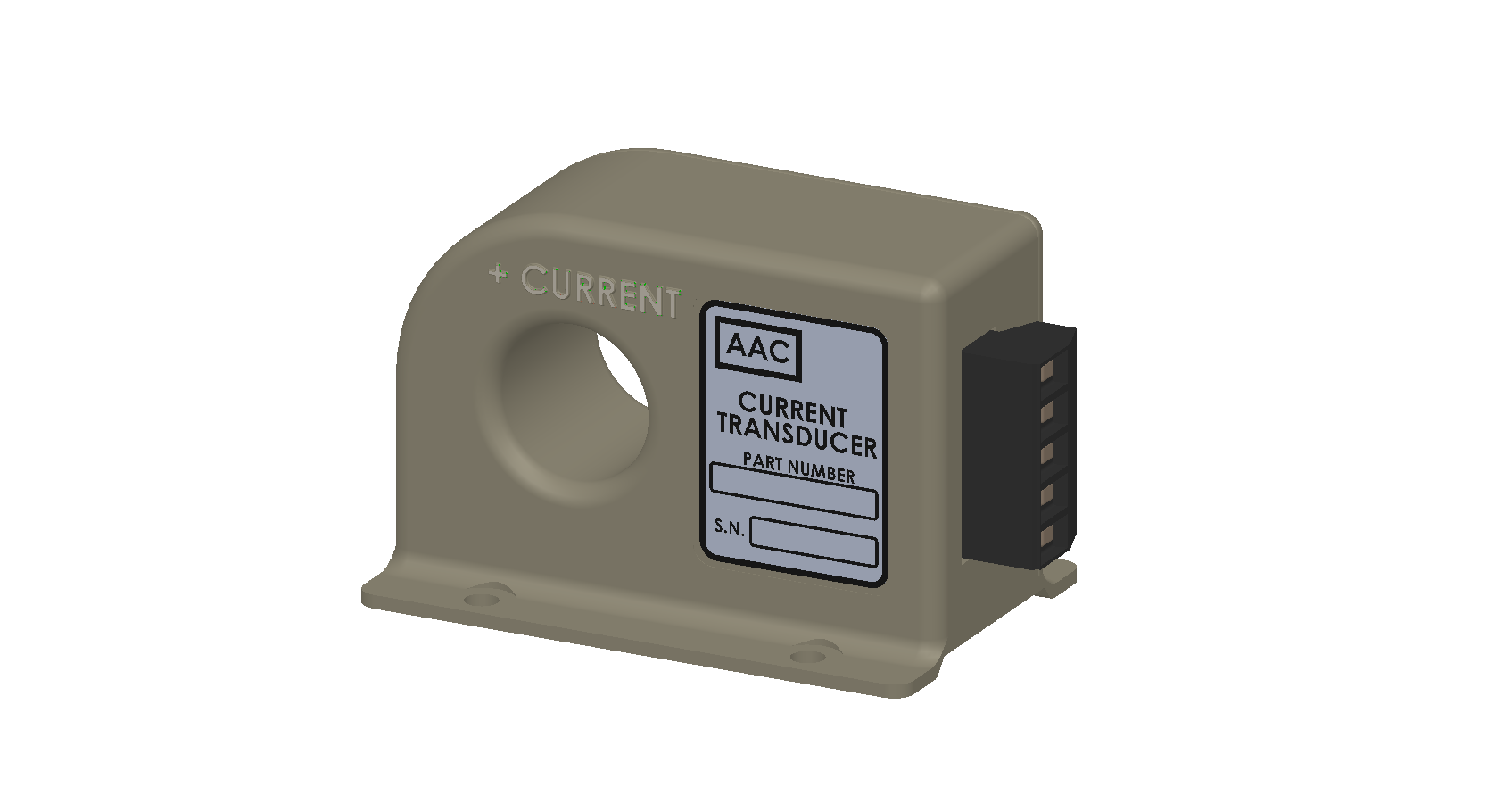

ModelĀ 1080 AC Current (RMS) Transducer provides an isolated 0 to +5Vdc output proportional to the True AC RMS input current. The transducers are operated in a two wire loop power configuration, with an input current range from 2A to 250A and an overload of 500Aac.

The 1080 Series delivers high performance accuracy over a temperature range from -40Ā°C to +85Ā°C and measures input current with a frequency range from 47 to 63Hz, with Crest Factors up to 4. The transducers are low powered, operate with a supply voltage from +10Vdc to +32Vdc and produce low output ripple.Ā  The transducerā€™s molded construction with the internal components encapsulated withstands, without performance or mechanical degradation, applications with shock, vibration and humidity requirements. In addition, the 1080 Series is ideal for applications where the input waveforms are phase angle fired, chopped or distorted.

The 1080 AC Current TransducersĀ are light weight, non-intrusive and are available with a barrier, connector or d-sub connector interface, with the connector and d-sub connector options available with mating connectors.

  • Measure Motor Current
  • Measure Heating Elements
  • Monitor and Detect Fault Currents

Additional information

Weight 7 oz
Dimensions 3 × 3 × 2 in


Current Range

, , , , , , , , , , , , ,


, ,


Supply Voltage


Housing Material

Input Diameter

Supply Type

Frequency Range

47 to 63Hz

Crest Factor


Additional info: Weight 6 oz. Max, Attitude: Works in any mounting position.

Mate Connector: 6282-5SG-3DC MFG Conxall. Mate D-Sub Connector: 3322 MFG. SPC Technology

Specified accuracy includes the combined worst case effects of Zero Offset, Temperature, Hysteresis, Supply Swings and Current Cable Positioning.
