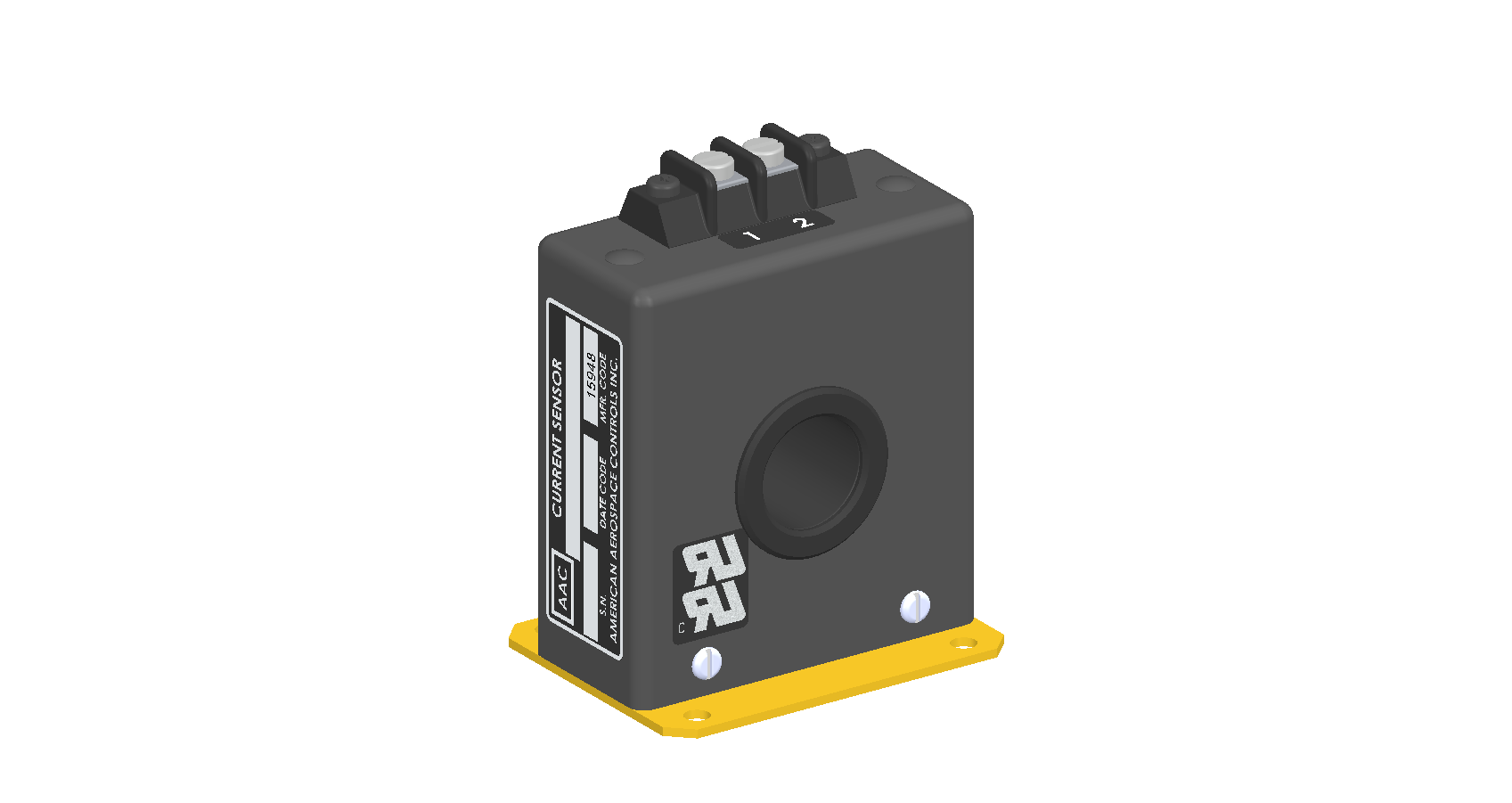

AC Current Transducer S383L

$276.00

SKU: S383L Category: Tags: ,
View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



  • Low Current Measurement
  • Isolated Measurement
  • Loop Power (Two Wire Configuration)
  • ±0.5% Accuracy
  • 0.75” Diameter Thru-hole
  • Reverse Polarity Protection
  • 100m-sec Response (10% to 90%)
  • Light Weight (10oz. Maximum)
  • 6 Standard Current Ranges

Product Description

Model S383L AC Current Transducer provides an isolated 4-20mAdc output proportional to the True AC input current. The transducers are operated in a two wire loop power configuration, with an input current range from 50mAac to 1Aac and the transducers withstand, without performance degradation or damage, a continuous overload of 250Aac and overload transients one-hundred times full-scale for 250m-sec.

The S383L Series delivers high performance accuracy over a temperature range from -40°C to +85°C and measures input current with a frequency range from 50 to 60Hz. The transducers operate with a supply voltage from +7 to +35Vdc and produce a 4-20mA output into a load resistance from 0 to 1400 Ohms. In addition, the S383L Series is ideal for applications where the input waveforms are phase angle fired, chopped or distorted.

The S383L AC Current Transducers are constructed of light weight powder coated aluminum housing, are non-intrusive, come standard with a barrier interface, a .075” (1.91cm) input thru-hole and are UL and CSA Recognized.

  • Measure Motor Current
  • Measure Heating Elements
  • Monitor and Detect Fault Currents

Additional information

Weight 10 oz
Dimensions 3 × 3 × 2 in
Supply Voltage

Input Diameter

Housing

Housing Material

Output

Supply Type

Interface

Input

Current Range

, , , , ,

Measurement

Frequency Range

50 to 60Hz

Additional info: Weight 10 oz. Max, Attitude: Works in any mounting position.
