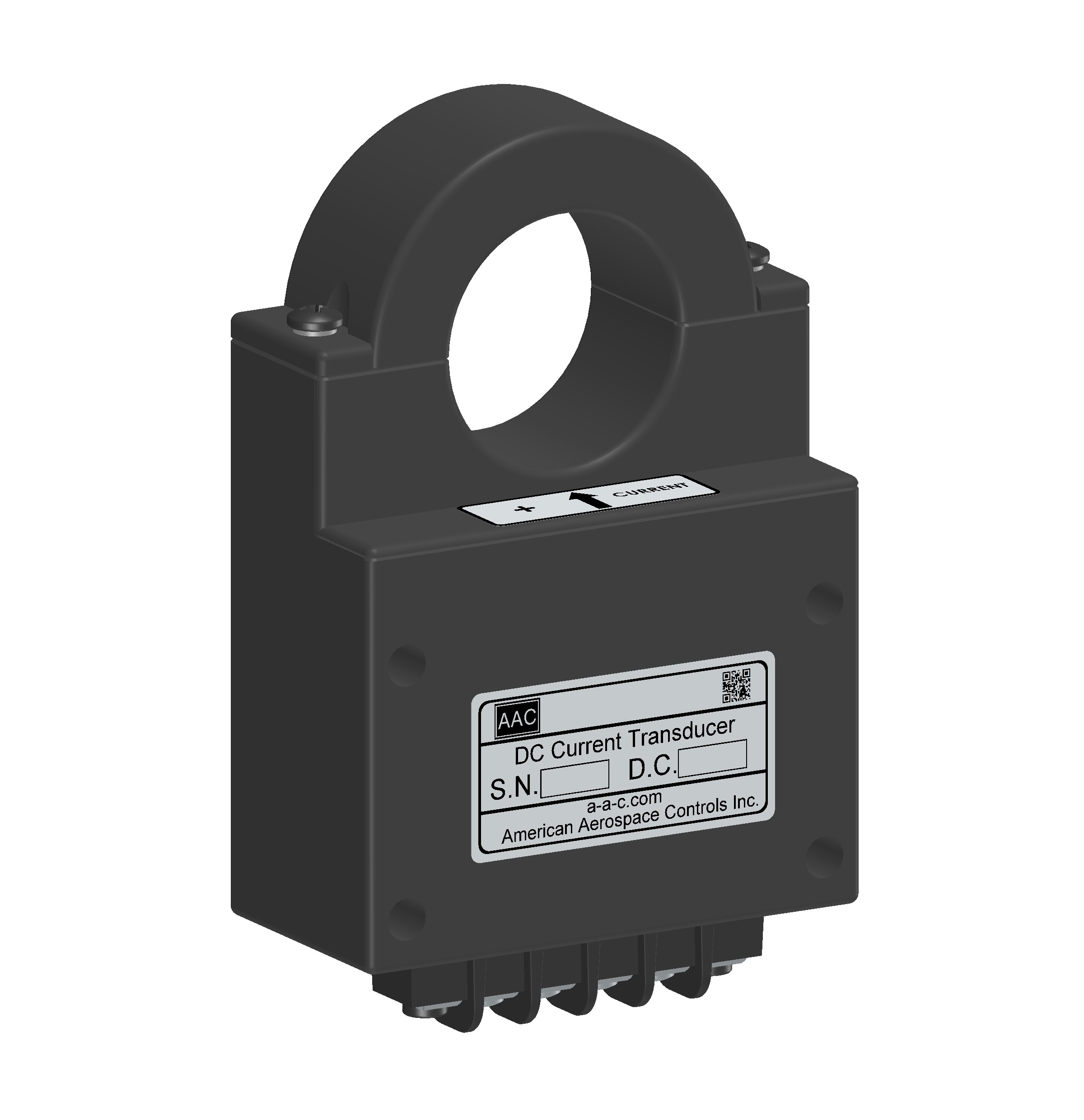

DC Current Transducer S347

$512.00$546.00

View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



  • Isolated Measurement
  • Open Loop/ Hall Effect Design
  • Removable Yoke
  • 1.50” (3.81cm) Diameter Thru-hole
  • ±1.0% Accuracy
  • 200 µ-second Response (10% to 90%)
  • Reverse Polarity Protection
  • 6 Standard Current Ranges

Product Description

Model S347 DC Current Transducer, with removable yoke, provides an isolated 0 to +5Vdc output proportional to the DC input current.  The transducers have an input current range from +100Adc to +2500Adc and the transducers withstand, without performance degradation or damage, an overload of 100 times full-scale.

The S347 Series delivers performance accuracy over a temperature range from -25°C to +75°C, operates with a supply voltage from +24Vdc to +32Vdc and are fast responding.  The unit’s aluminum casted construction, with the internal components encapsulated creates a rugged and durable transducer.

The S347 DC Current Transducer comes standard with a 1.50” (3.81cm) removable yoke, allowing for uninterrupted operation installation, which makes this transducer ideal for existing or retro-fit applications, as well as moveable multi-point monitoring. The transducers are available with a barrier and connector interface, with the connector option available with mating connector.

  • Rail Traction Motor Monitoring
  • Automation Equipment Monitoring
  • Manufacturing Equipment Current Monitoring

Additional information

Weight 16 lbs
Dimensions 3 × 3 × 2 in
Current Range

, , , , , , , , , , ,

Interface

,

Input

Measurement

Output

Supply Type

Supply Voltage

Housing

Housing Material

Input Diameter

  • Attitude: Works in any mounting position
  • Black Anodized Finish
  • Mate Connector: TYPE PT06A-10-6S or equivalent mating connector.
