DC Current Transducer 904B


View 3D Image PDF

(note: requires 3D viewer)


Download Specifications

(note: requires Adobe Reader)


  • Isolated Measurement
  • Micro and Mill-Amp Sensing
  • Military Temperature Range
  • ±1.0% Accuracy
  • Reverse Polarity Protection
  • Moisture and Humidity Resistant
  • 6 Standard Current Ranges (3 Micro/ 3 Mill-Amp)

Product Description

Model 904B DC Current Sensor provides an isolated 0 to +5Vdc output proportional to the DC input current.  The sensors have an input current range from +100uAdc to +5mAdc and the sensors have an input to output isolation of 500Vdc.

The 904B Series delivers performance accuracy over a temperature range from -55°C to +85°C, operates with a supply voltage from +24Vdc  to +32Vdc and are fast responding.  The unit’s powder coated steel housing, with the internal components encapsulated creates a rugged and durable sensor, withstanding environments of moisture, humidity, vibration, shock and altitude.

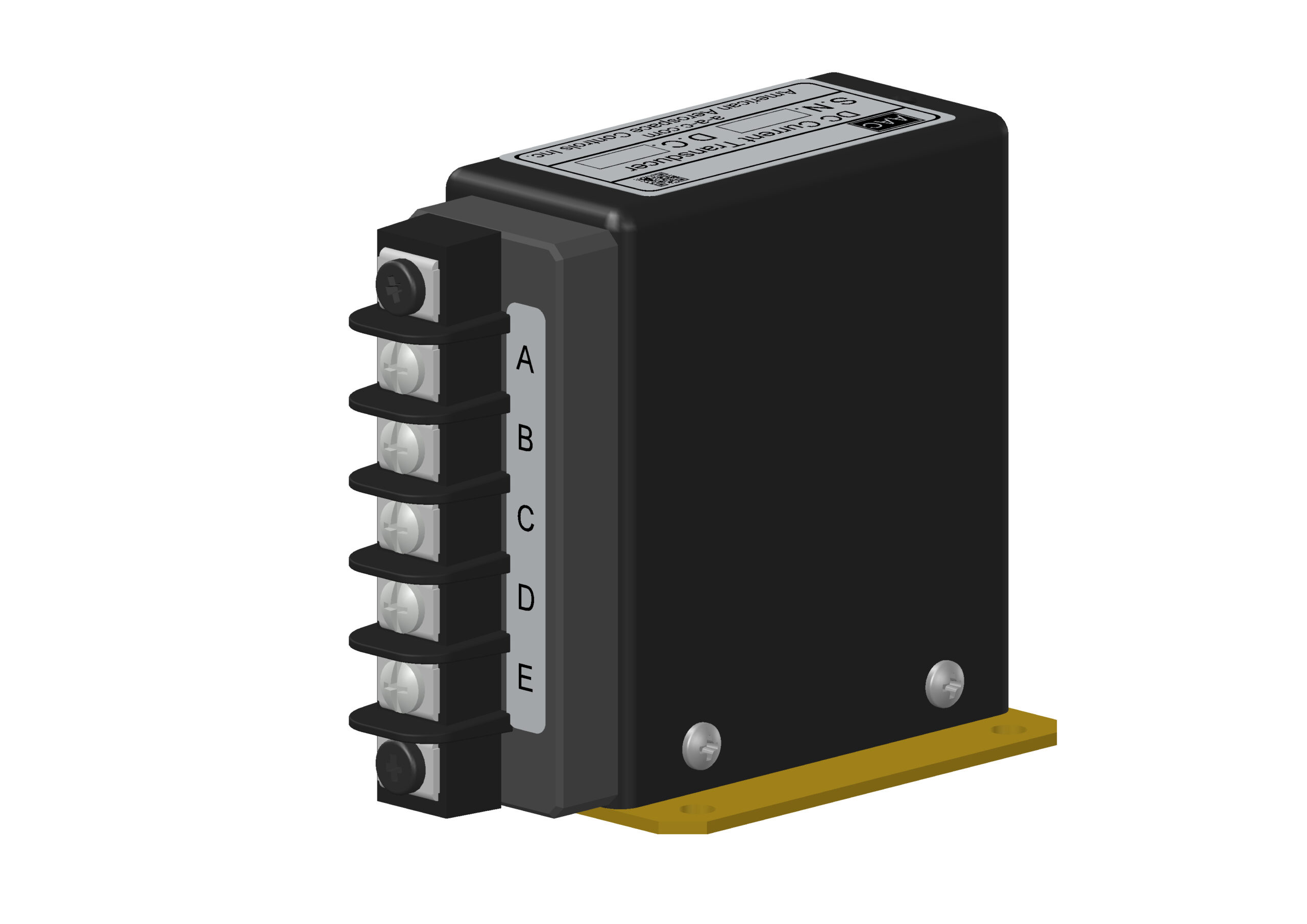

The 904B DC Current Transducer are available with a header, barrier or connector interface, with the connector option available with mating connector.

  • DC Ground Leakage Current Monitoring
  • GFI Applications

Additional information

Weight 14 oz
Dimensions 3 × 3 × 2 in



Supply Voltage

Supply Type

Housing Material

Current Range

, , , , ,



, ,

  • Attitude: Works in any mounting position
  • Operating: Sea Level to 60,000ft
  • Mate Connector: TYPE PT06A-10-6S or equivalent mating connector.
