- Isolated Measurement
- Closed Loop/ Hall Effect Design
- Military Temperature Range
- ±0.5% (Minimum) Accuracy at +25°C (Reference Specification Sheet)
- <1 µ-second Response (10% to 90%)
- Reverse Polarity Protection
- Moisture and Humidity Resistant
- 11 Standard Current Ranges
DC Current Transducer 952
$404.00 – $440.00
Product Description
Model 952 DC Current Transducer provides an isolated 0 to +5Vdc output proportional to the DC input current. The transducers have an input current range from +50Adc to +750Adc and the transducer withstand, without performance degradation or damage, an overload of +5000Adc.
The 952 Series delivers high performance accuracy over a temperature range from -55°C to +85°C, operates with a supply voltage from +24Vdc to +32Vdc and are ultra-fast responding. The unit’s powder coated aluminum housing, with the internal components encapsulated creates a rugged and durable transducer, withstanding environments of moisture, humidity, vibration, shock and altitude.

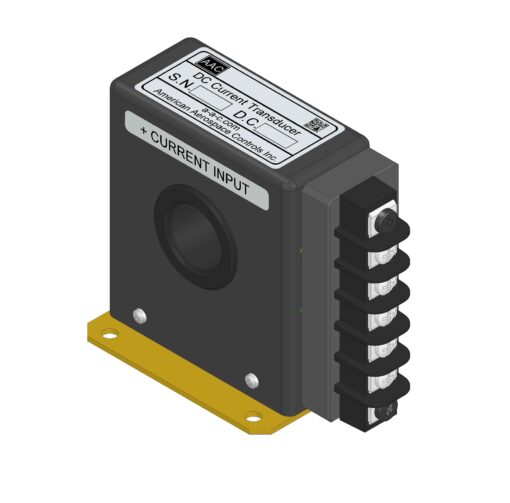

The 952 DC Current Transducer comes standard with a 0.75” (1.91cm) thru-hole and are available with a header, barrier and connector interface, with the connector option available with mating connector.
- Aircraft – Auxiliary Fuel Systems Monitoring
- Automation Equipment Monitoring
- Aviation Systems Monitoring
- Manufacturing Equipment Current Monitoring
Additional information
Weight | 13 oz |
---|---|
Dimensions | 3 × 3 × 2 in |
Input | |
Measurement | |
Current Range | 100A, 150A, 200A, 250A, 300A, 400A, 500A, 50A, 600A, 60A, 750A |
Interface | |
Output | |
Supply Voltage | |
Housing | |
Housing Material | |
Input Diameter | |
Supply Type | |
Frequency Range | DC to 100kHz |
Response | <1 μ-second |
- Attitude: Works in any mounting position,
- Baseplate is conductive.
- Mate Connector: TYPE PT06A-10-6S or equivalent mating connector.
