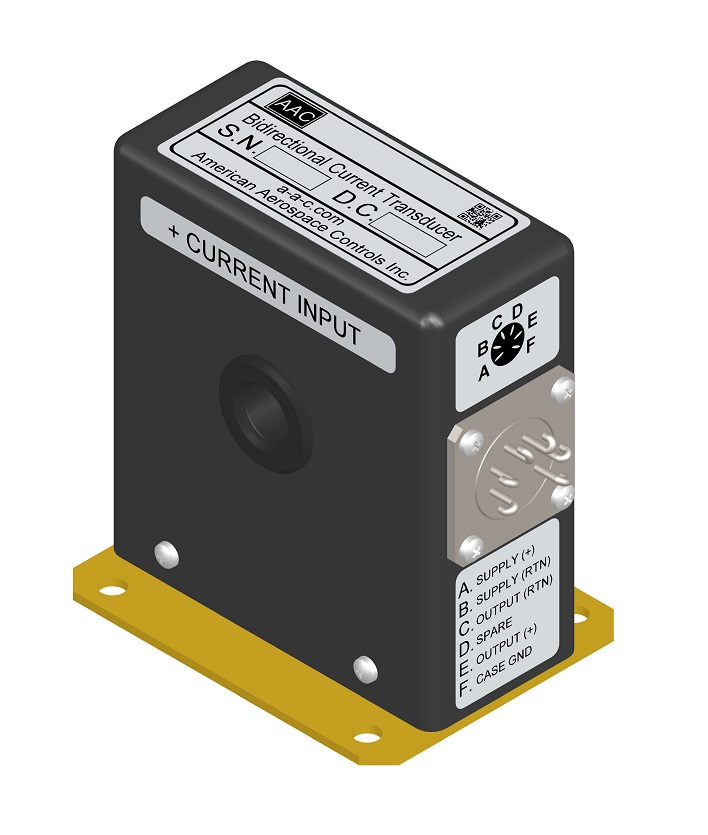

Bidirectional Current Transducer 926


View 3D Image PDF

(note: requires 3D viewer)


Download Specifications

(note: requires Adobe Reader)


  • Isolated Measurement
  • Military Temperature Range
  • ±0.25% Accuracy
  • Moisture and Humidity Resistant
  • Reverse Polarity & Short Circuit Protection
  • Output Isolation
  • 5 Standard Current Ranges

Product Description

Model 926 Bidirectional Current Transducer provides an isolated 0 to ±5Vdc output proportional to the DC input current.  The transducers have an input current range from ±5Adc to ±25Adc and the transducers withstand, without performance degradation or damage, a continuous overload of 100Adc.

The 926 Series delivers high performance accuracy (0.25%) over a temperature range from -55°C to +85°C, operate with a supply voltage from +28Vdc ±4Vdc and produce the specified output within 15m-seconds.  The unit’s powder coated steel housing, with the internal components encapsulated creates a rugged and durable transducer, withstanding environments of moisture, humidity, vibration, shock and altitude.

The 926 Bidirectional Current Transducers are non-intrusive and are available with a header, barrier or connector interface, with the connector option available with mating connector.

  • Rail Traction Motor Monitoring
  • Industrial Equipment Monitoring
  • Bidirectional Power System Monitoring

Additional information

Weight 14 oz
Dimensions 3 × 3 × 2 in


, ,

Current Range

, , , ,




Supply Voltage


Housing Material

Input Diameter

Supply Type

  • Attitude: Works in any position.
  • Operating: Sea Level to 60,000ft
  • Mate Connector: TYPE PT06A-10-6S or equivalent mating connector..
