DC Current Detector S201


View 3D Image PDF

(note: requires 3D viewer)


Download Specifications

(note: requires Adobe Reader)


  • 3 point isolation
  • Operating temperature from -55°C to +70°C
  • 3/8 inch pass-thru hole
  • Polarity protected
  • Automatic reset
  • Rugged powder coat finish

Product Description

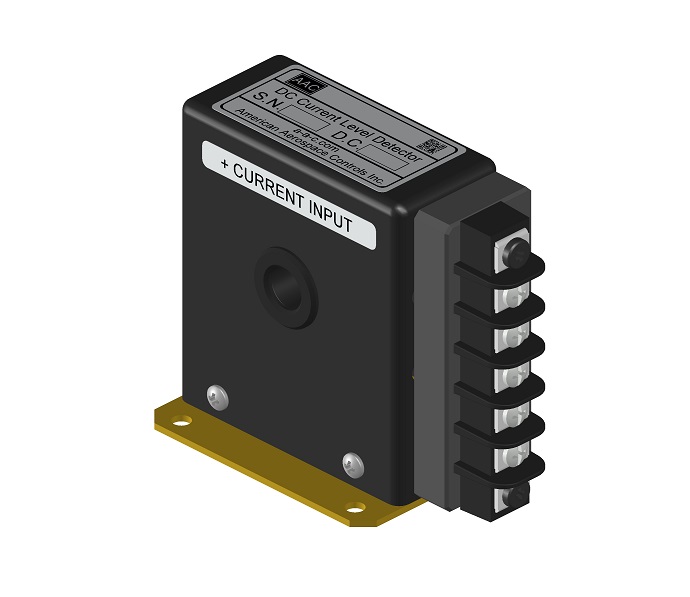

Model S201 DC Current Level Detector features an effective and accurate solution to monitor DC current. A conductor wire is routed through a 3/8 inch thru-hole which provides non-intrusive and isolated means to measure desired current. After input current reaches the desired threshold, the relay closes. A high precision internal reference guarantees repeatable operation. The detector has trip point set to 1.0Aac with 100Adc of nondestructive current carrying capability.

The S201 Series delivers accuracy over a temperature range from -55°C to +70°C and operates with a supply voltage from +24Vdc to +32Vdc. The unit’s powder coated steel housing, with the internal components encapsulated creates a rugged and durable detector.

The S201 DC Current Detectors are available with a header, barrier or connector interface, with the connector option available with mating connector.

  • Monitor electrical heater coils
  • Monitor electrical motors

Additional information

Weight 14 oz
Dimensions 3 × 3 × 2 in
Input Diameter

Supply Voltage

Housing Material


Supply Type


Current Range



, ,


Additional info: Weight 16 oz. Max,

Attitude: Works in any mounting position

Mate Connector: TYPE PT06A-10-6S or equivalent
