AC Current (RMS) Transducer S461


View 3D Image PDF

(note: requires 3D viewer)


Download Specifications

(note: requires Adobe Reader)


  • Removable Yoke
  • 1.50” Diameter Thru-hole
  • Isolated Measurement
  • ±1.0% Accuracy
  • 4:1 Crest Factor Capability
  • Moisture and Humidity Resistant
  • Low Power (20mA Maximum)
  • Reverse Polarity & Short Circuit Protection
  • 10 Standard Current Ranges

Product Description

Model S461 AC Current (RMS) Transducer provides an isolated 0 to +5Vdc output proportional to the AC RMS input current. The transducers have an input current range from 100Aac to 3000Aac, and the transducers withstand, without performance degradation or damage, a continuous overload of twice full-scale, or ten-times full-scale for 10 seconds.

The S461 Series delivers performance accuracy over a temperature range from -40°C to +85°C and measures input current with a frequency range from DC to 480Hz, with Crest Factors up to 4.  The transducers are low powered, operate with a supply voltage from +11Vdc to +32Vdc, produce low output ripple and have output transient protection.  The unit’s molded construction, with internal components encapsulated, creates a durable transducer, withstanding environments of moisture, humidity, vibration, shock and altitude.

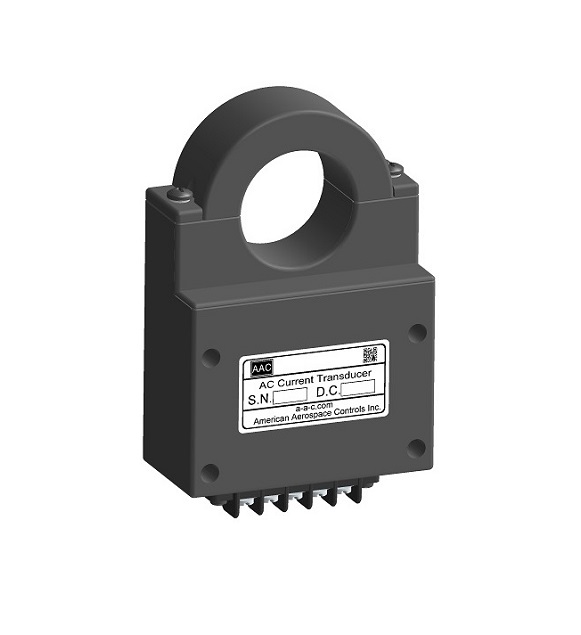

The S461 AC Current Transducer comes standard with a 1.50” (3.81cm) removable yoke, allowing for uninterrupted operation installation, which makes this transducer excellent for existing or retro-fit applications, as well as moveable multi-point monitoring.  The transducers are available with a barrier or connector interface, with the connector option available with mating connector.

The S461 Series is the next generation of the 1001 AC Current Transducer.

  • Traction Power Measuring
  • AC and DC Load Current Monitoring
  • Charging System Monitoring
  • Motor Current Measuring
  • Fault and Overload Current Monitoring

Additional information

Weight 16 oz
Dimensions 3 × 3 × 2 in


Current Range

, , , , , , , , ,


Supply Type

Housing Material

Input Diameter

Supply Voltage



, ,

Frequency Range

DC to 480Hz

Crest Factor


  • Attitude: Works in any mounting position.
  • Mate Connector: TYPE PT06A-10-6S or equivalent mating connector.
