DC Current Detector 901B

$1,133.00$1,167.00

View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



  • Isolated Measurement
  • High voltage current measurement capability
  • 3/4 inch pass-thru hole
  • Polarity protected
  • Automatic reset
  • Low power operation
  • Rugged powder coated finished housing
  • Two separate outputs (logic & analog)

Product Description

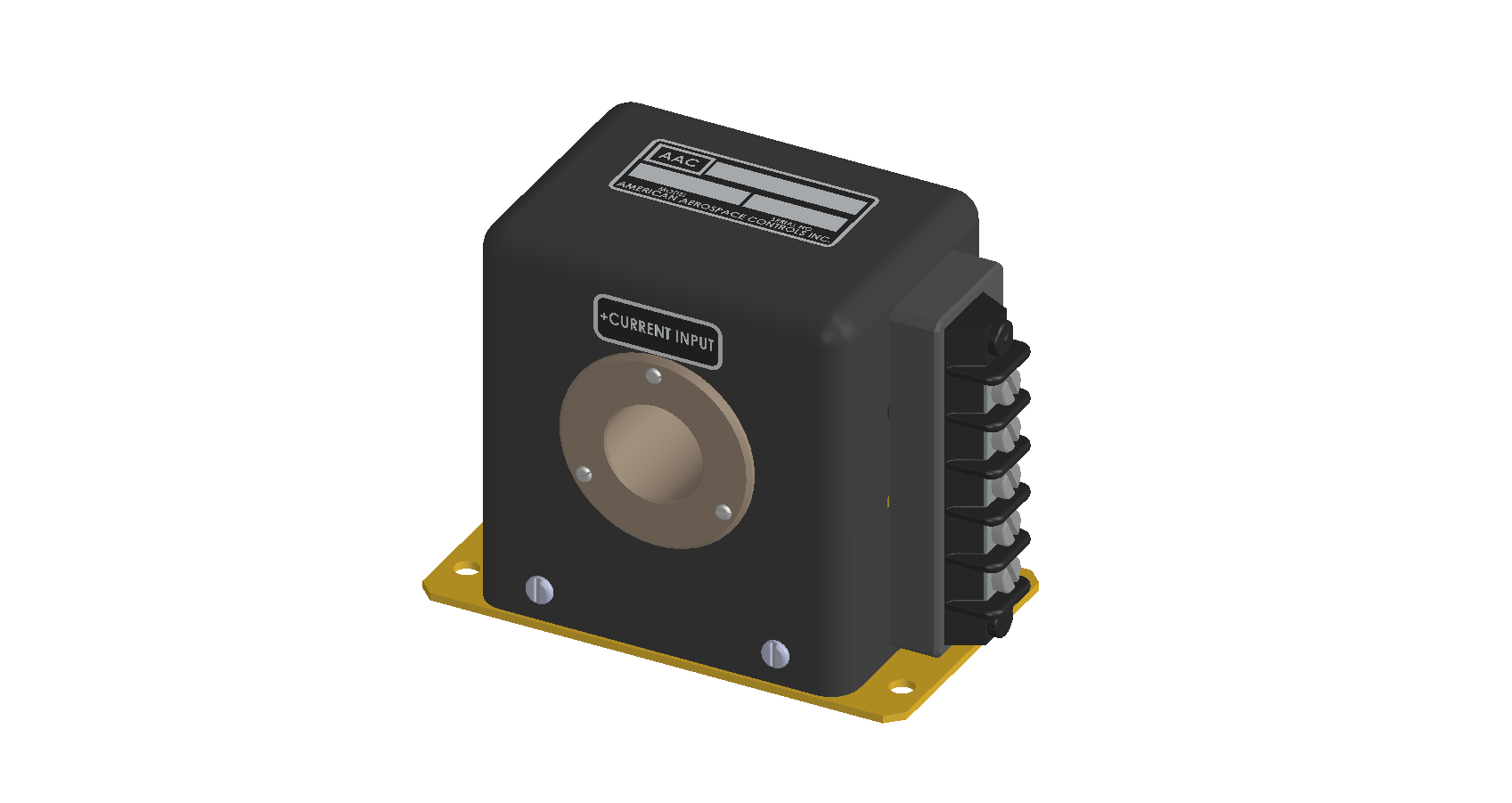

Model 901B DC Current Level Detector provides an effective and accurate solution to monitor DC current. A conductor wire is routed through a 3/4 inch thru-hole which provides non-intrusive and isolated means to measure desired current. The unit provides two separate outputs: first, “logic high” when the measured current reaches the applicable trip point and second, a 0Vdc to 5Vdc signal directly proportional to the measured input current.

The 901B Series has input current range from 20mA to 5A and an adjustable trip point between 70% and 110% of full scale current. The unit is designed to measure the applicable current while the voltage of the thru conductor reaches levels up to 30kV.  The detector delivers performance accuracy over a temperature range from -20°C to +70°C and operates with a supply voltage from +21Vdc to +27Vdc. The unit’s powder coated steel housing, with the internal components encapsulated, creates a rugged and durable detector.

The 901B DC Current Detectors are available with a header, barrier or connector interface, the connector option is available with mating connector.

  • Monitor Ground Fault
  • High Voltage System Monitoring

Additional information

Weight 30 lbs
Dimensions 3 × 3 × 2 in
Measurement

Input

Current Range

, , , , , , , ,

Interface

, ,

Output

,

Supply Voltage

Housing

Housing Material

Input Diameter

Supply Type

  • Attitude: Works in any position.
  • Mate Connector: TYPE PT06A-10-6S or equivalent
