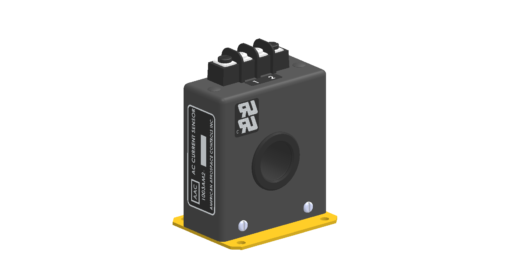

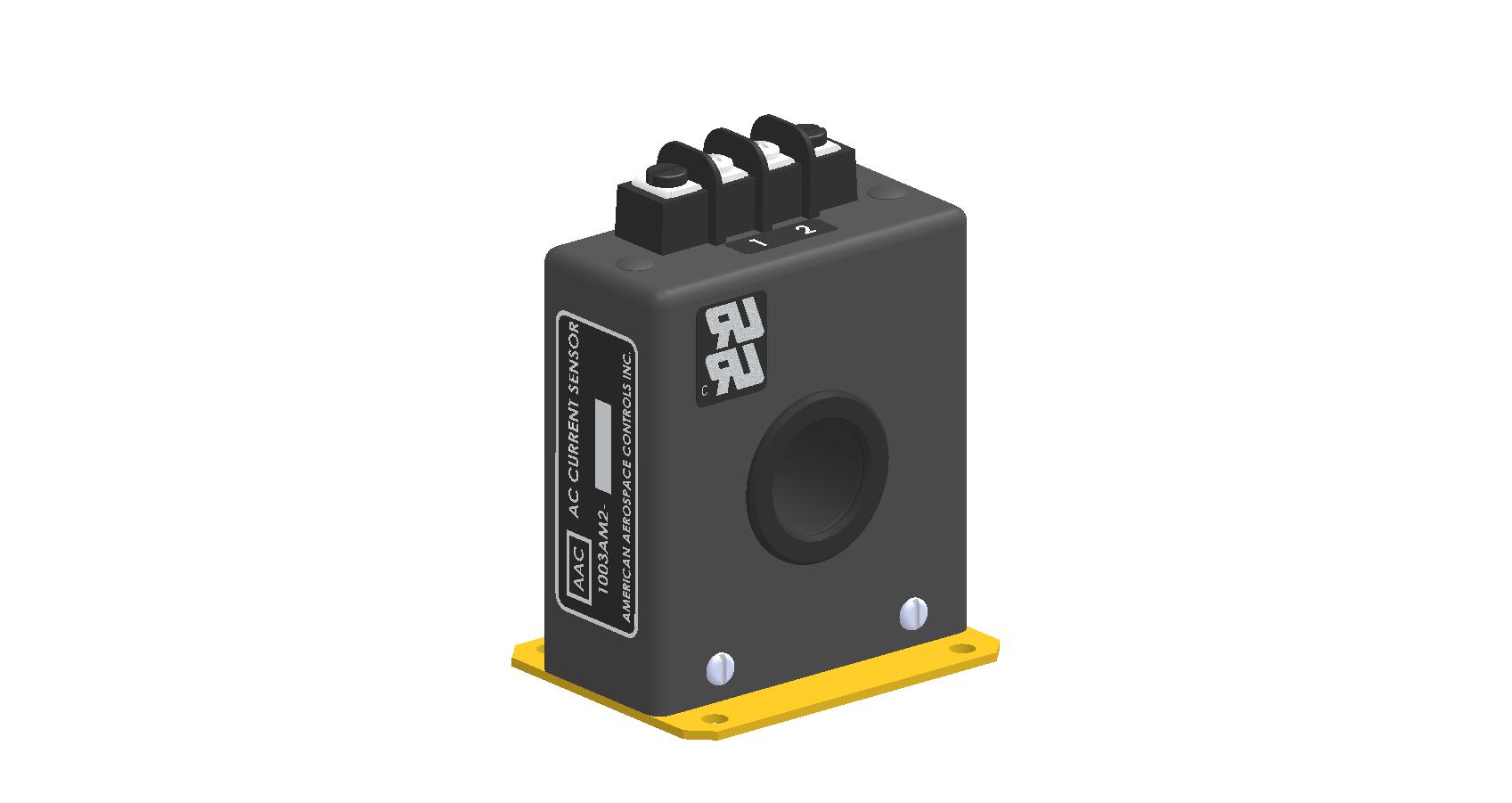

AC Current Transducer 1003AM2

$216.00$236.00

SKU: 1003AM2 Category: Tags: ,
Download Specifications

(note: requires Adobe Reader)



  • Easy Connectivity/ Simple Utilization
  • Isolated Measurement
  • Self-excited, no power required
  • ±1.0% Accuracy
  • 0.75” Diameter Thru-hole
  • ±0.5% Full-scale Repeatability
  • 13 Standard Current Ranges

Product Description

Model 1003AM2 AC Current Transducer provides an isolated 0 to +5Vdc output proportional to the AC input current. The transducer are self-excited (no power required), with an input current range from 10Aac to 300Aac, with a frequency range from 57 to 63Hz and the transducers withstand, without performance degradation or damage, a continuous overload of 500Aac.

The 1003AM2 Series delivers performance accuracy over a temperature range from -20°C to +70°C and the unit’s powder coated steel exterior creates a rugged and durable transducer.

The 1003AM2 AC Current Transducers are non-intrusive, come with a fly-lead or barrier interface and are UL and CSA Recognized.

  • Lighting Monitoring
  • Motor Current Faults
  • Conveyor Belt Monitoring

Additional information

Weight 8 oz
Dimensions 3 × 3 × 2 in
Current Range

, , , , , , , , , , , ,

Measurement

Input

Interface

,

Output

Housing

Housing Material

Input Diameter

Supply Type

Frequency Range

57 to 63Hz

  • Attitude: Works in any position.
