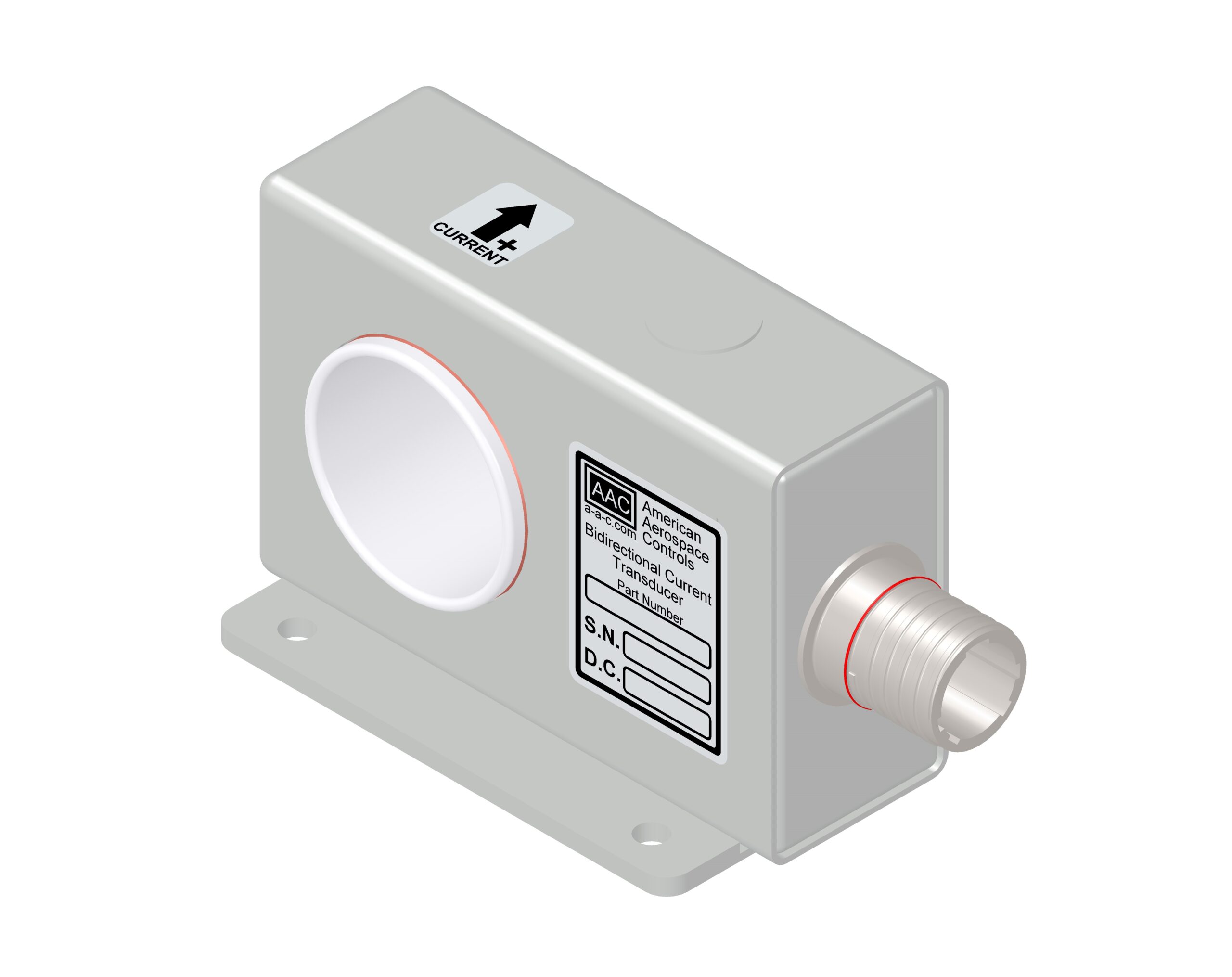

Bidirectional Current Transducer S1149-600

$2,409.00

View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



  • Open Loop/ Hall Effect Design
  • I/O Isolation
  • 4 to 20mA Output (No Input Current 12mA Output)
  • ±0.5% Accuracy
  • 1.12” (2.84cm) Diameter Thru-hole
  • Reverse Polarity Protected
  • 500 u-sec Response Time

Product Description

Model S1149 Bidirectional Current Transducer provides an isolated 4 to 20mA current loop, where without an input current present, the transducer outputs 12mA, at minus full scale the transducer outputs 4mA and at positive full scale the unit outputs 20mA.  The transducer’s have an input current range from 0 to ±600Adc (DC to 1kHz Frequency Range) and can withstand, without performance degradation or damage, an overload of 10KAdc.

The S1149 Series delivers performance accuracy over a temperature range from -40°C to +85°C, operates with a supply voltage from +16Vdc to +40Vdc, is low powered and fast responding.  The unit’s tin-plated brass alloy housing is hermetically sealed, with the internal components encapsulated; creating a rugged and durable transducer.  The transducer is capable of withstanding environments of moisture, humidity, vibration, shock and altitude, without damage or performance degradation.

The S1149 Bidirectional Current Transducer comes standard with a 1.12” (2.84cm) thru-hole, is light weight and  available with a connector interface.

  • Industrial Equipment Monitoring
  • Automation Equipment Monitoring
  • Fuel Management Systems Monitoring
  • Traction Motor Monitoring
  • Maritime Power Generation Monitoring

Additional information

Current Range

Housing

Housing Material

Input

Input Diameter

Interface

Measurement

Output

Supply Type

Supply Voltage
