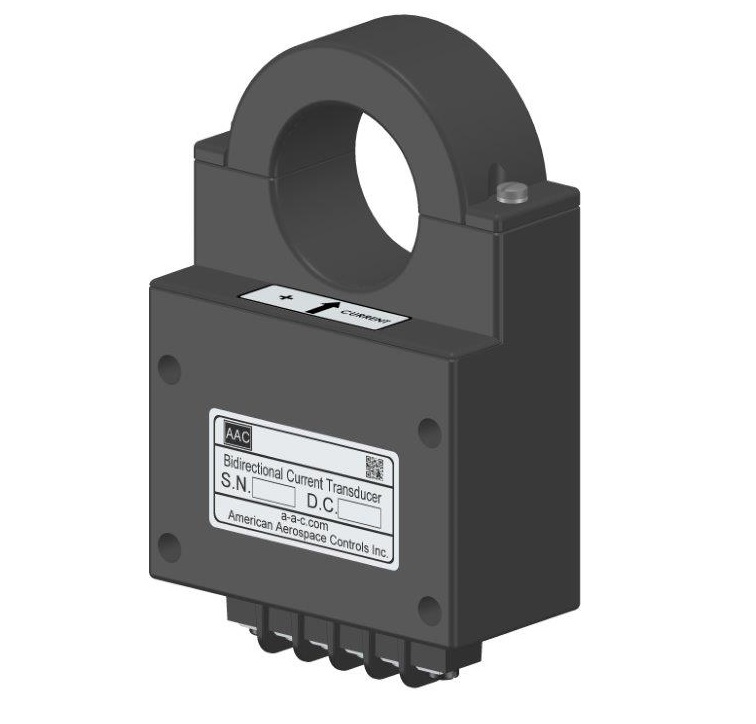

Bidirectional Current Transducer 909M4

$604.00$640.00

View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



  • Open Loop/ Hall Effect Design
  • Removable Yoke
  • Isolated Measurement
  • ±1.0% Accuracy
  • Low Power (25mAdc Maximum)
  • Case UL Flammability Rating 94V-0
  • Reverse Polarity & Short Circuit Protection
  • 8 Standard Current Ranges

Product Description

Model 909M4 Bidirectional Current Transducer provides an isolated 0 to ±5Vdc output proportional to the DC input current.  The transducers have an input current range from ±150Adc to ±2500Adc and the transducers withstand, without performance degradation or damage, a continuous overload of one-hundred times full-scale.

The 909M4 Series delivers performance accuracy over a temperature range from -40°C to +85°C, operate with a supply voltage from +15Vdc ±2Vdc and are low powered.  The unit’s molded construction, with the internal components encapsulated, creates a durable transducer.

The 909M4 Bidirectional Current Transducer comes standard with a 1.50” (3.81cm) removable yoke, allowing for uninterrupted operation installation, which makes this transducer excellent for existing or retro-fit applications, as well as moveable multi-point monitoring.  The transducers are available with a barrier or connector interface, with the connector option available with mating connector.

  • Rail Traction Motor Monitoring
  • Industrial Equipment Monitoring
  • Bidirectional Power System Monitoring

Additional information

Weight 17 oz
Dimensions 3 × 3 × 2 in
Input Diameter

Supply Voltage

Housing

Housing Material

Supply Type

Measurement

,

Current Range

, , , , , , ,

Output

Input

Interface

,

  • Attitude: Works in any position.
  • Mate Connector: TYPE PT06A-10-6S or equivalent
