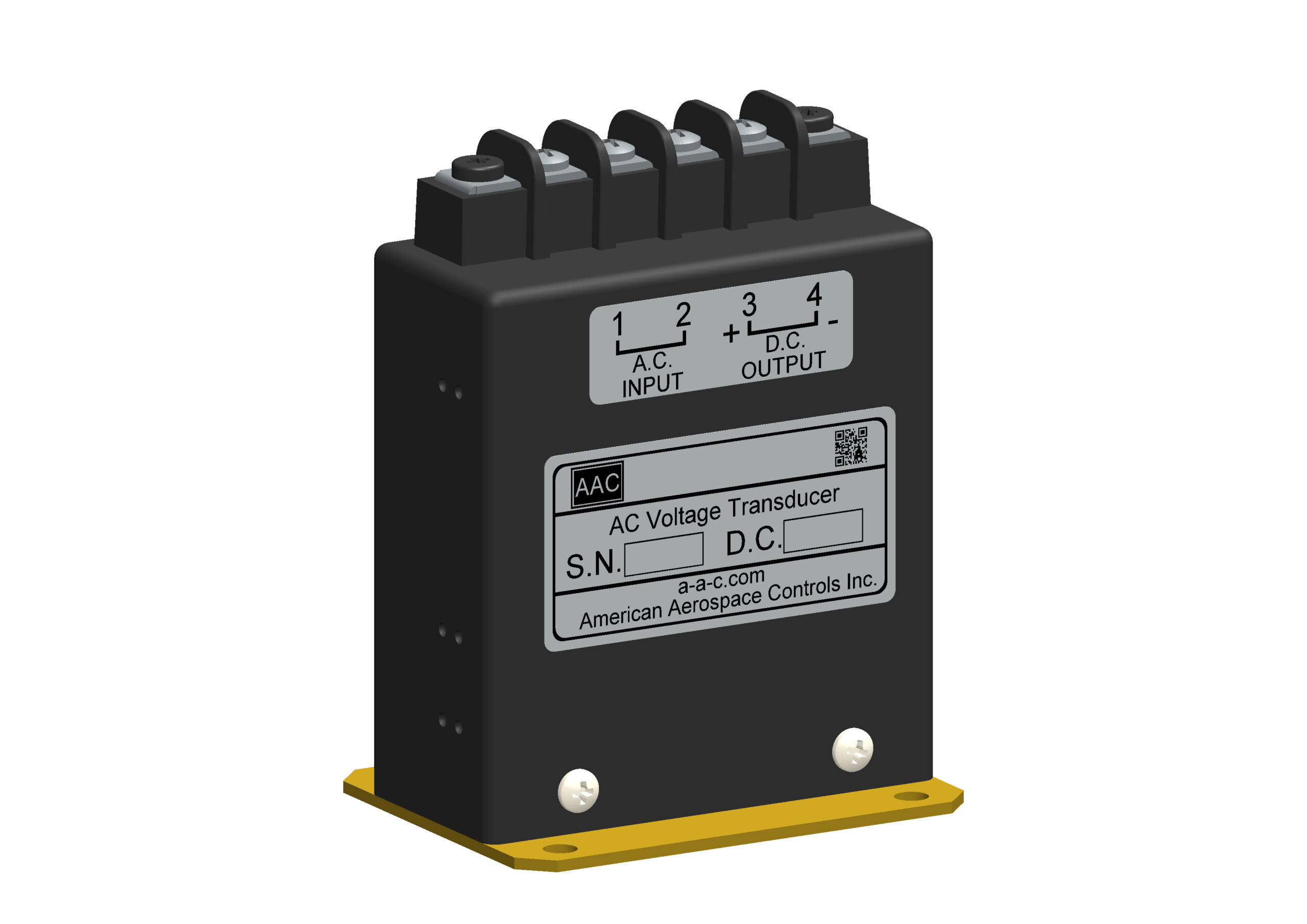

AC Voltage Transducer 108X

$383.00$416.00

View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



  • 4 to 20mA loop power operation
  • True RMS measurement
  • Isolated measurement
  • Operating temperature from -40°C to +85°C
  • 0.5% accuracy over temperature range
  • Powder coated finished housing
  • Reverse polarity protected

Product Description

Model 108X AC Voltage (RMS) Transducer features an effective, accurate and reliable solution to measure AC voltage.  The unit produces a fully isolated 4 to 20mA output signal proportional to the input voltage, with an  accuracy of ±0.5% and is specified to operate at 57 to 63Hz.  The transducer  is also available with operation at 50Hz, 400Hz and 4000Hz.

The 108X AC Voltage Transducer also measure signals with a crest factor of up to 4 and has input voltage range from 50V to 600V AC.  The unit operates from -40°C to +85°C and comes standard with a barrier interface, a  connector and mating connector option is available.

  •  Lab equipment voltage monitoring
  •  Industrial equipment voltage monitoring
  •  Solar/ Renewable Energy Detection
  •  Theft Detection Systems
  •  Grid Automation



Additional information

Weight 14 lbs
Dimensions 3 × 3 × 2 in
Interface

,

Input

Measurement

Output

Supply Type

Supply Voltage

, , , ,

Housing

Housing Material

Voltage Range

130V, 150V, 270V, 300V, 500V, 50V, 600V

Additional Info: Weight 10 oz. Max, Attitude: Works in any position.
