AC Current Transducer 1002M1

$446.00$483.00

View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



Isolated Measurement

±0.5% Accuracy

Moisture and Humidity Resistant

Military Temperature Range

400Hz Operation

Low Power (25mA Maximum)

Fast Response (10m-sec Maximum)

Reverse Polarity & Short Circuit Protection

Encapsulated Design

13 Standard Current Ranges

Product Description

Model 1002M1 AC Current Transducer provides an isolated 0 to +5Vdc output proportional to the AC input current. The transducers have an input current range from 250mA to 250A, and the transducers withstand, without performance degradation or damage, a continuous overload of 200Aac or twice the applicable full-scale current, whichever is greater.

The 1002M1 Series delivers high performance accuracy over a temperature range from -55°C to +85°C and measures input current with a frequency range from 375 to 475Hz. The transducers are low powered, fast responding, operate with a supply voltage from +28Vdc ±4Vdc and produce low output ripple. The unit’s powder coated aluminum housing, with the internal components encapsulated, creates a rugged and durable transducer, withstanding environments of moisture, humidity, vibration, shock and altitude.

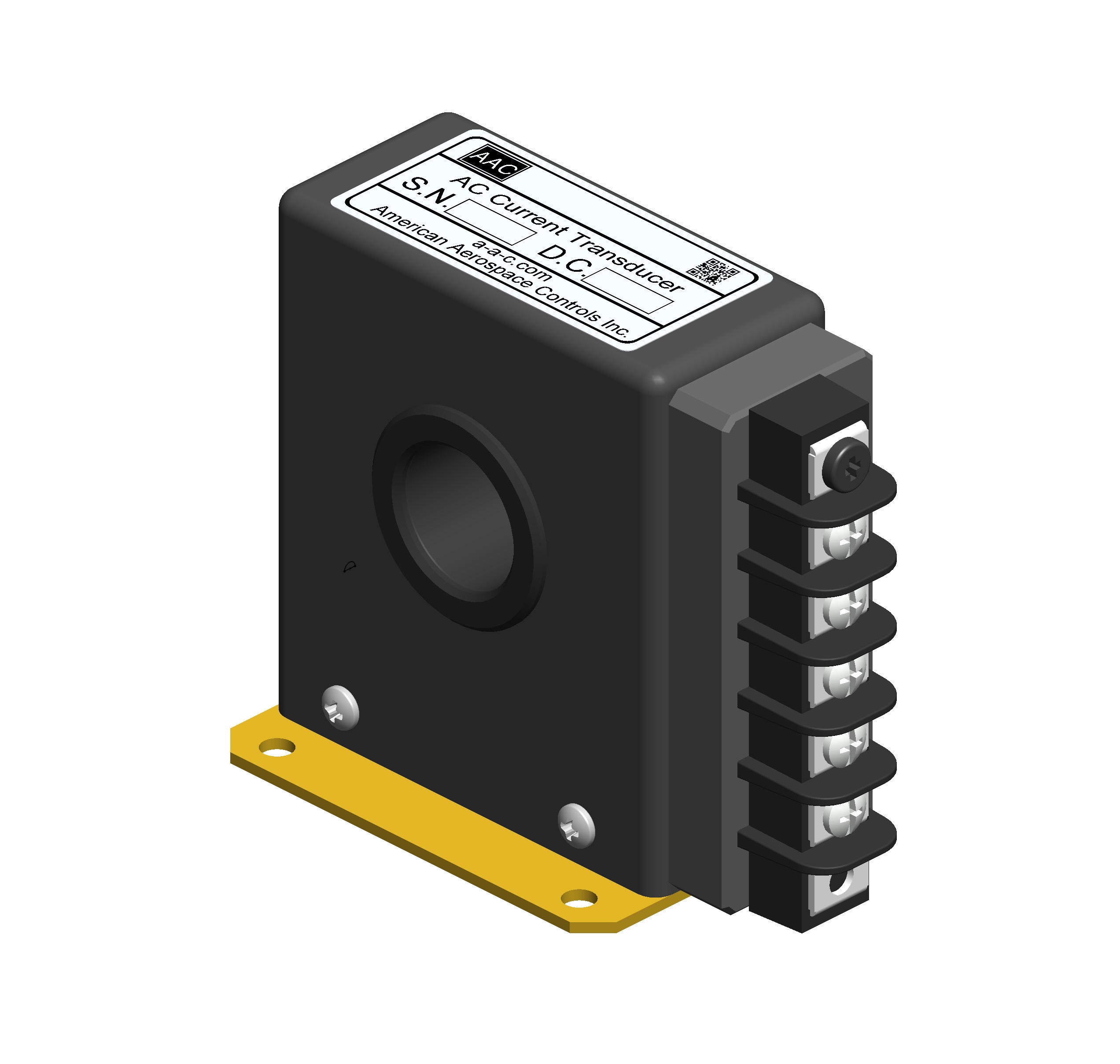

The 1002M1 AC Current Transducers are non-intrusive and are available with a header, barrier or connector interface, with the connector option available with mating connector.

Aircraft Power Monitoring

Motor Fault Monitoring

Load Current Measuring

Additional information

Weight 12 oz
Dimensions 3 × 3 × 2 in
Output

Measurement

Input

Interface

, ,

Current Range

, , , , , , , , , , , ,

Additional Info: Weight 1.25 lbs. Max.

Attitude: Works in any position.

Mate Connector: TYPE PT06A-10-6S or equivalent mating connector.
