AC Voltage Transducer 108


Download Specifications

(note: requires Adobe Reader)


  • Cost effective
  • Isolated measurement
  • Operating temperature from -40°C to +85°C
  • 0.5% accuracy
  • Self-powered
  • Powder coated finished housing

Product Description

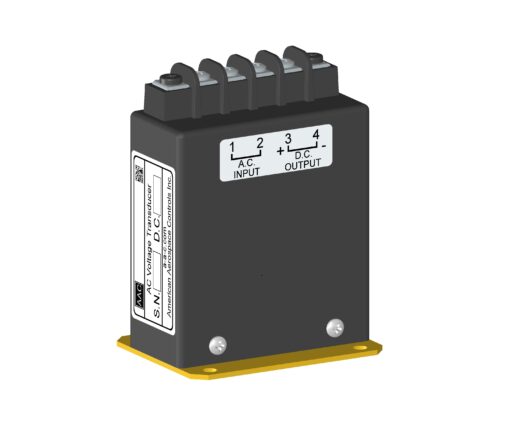

Model 108 AC Voltage Transducer features an effective, accurate and reliable solution to measure AC voltage. The unit produces a fully isolated 4 to 20mA output signal proportional to the input voltage, with an  accuracy of ±0.5% and is specified to operate at 57 to 63Hz.

The 108 AC Voltage Transducers are “self-excited”, meaning that the units do not require power to operate.  The transducer  is available with operation at 50Hz, 400Hz and 4000Hz. The unit has an input voltage range of 50 to 600V AC, operates from -40°C to +85°C and is available with a barrier or connector interface.  A mating connector is available for the connector option.

  •  Lab equipment voltage monitoring
  •  Industrial equipment voltage monitoring
  •  Solar/ Renewable Energy Detection
  •  Theft Detection Systems
  •  Grid Automation

Additional information

Weight 14 oz
Dimensions 3 × 3 × 2 in

Housing Material

Supply Type






Voltage Range

130V, 150V, 270V, 300V, 500V, 50V, 600V

Additional Info: Weight 10 oz. Max, Attitude: Works in any position.
