AC Voltage Transducer 105


View 3D Image PDF

(note: requires 3D viewer)


Download Specifications

(note: requires Adobe Reader)


  • Suppressed voltage measurement
  • Isolated measurement
  • Operating temperature from -40°C to +85°C
  • 0.5% accuracy over temperature range
  • Powder coated finished housing
  • Self-powered
  • 4 voltage ranges

Product Description

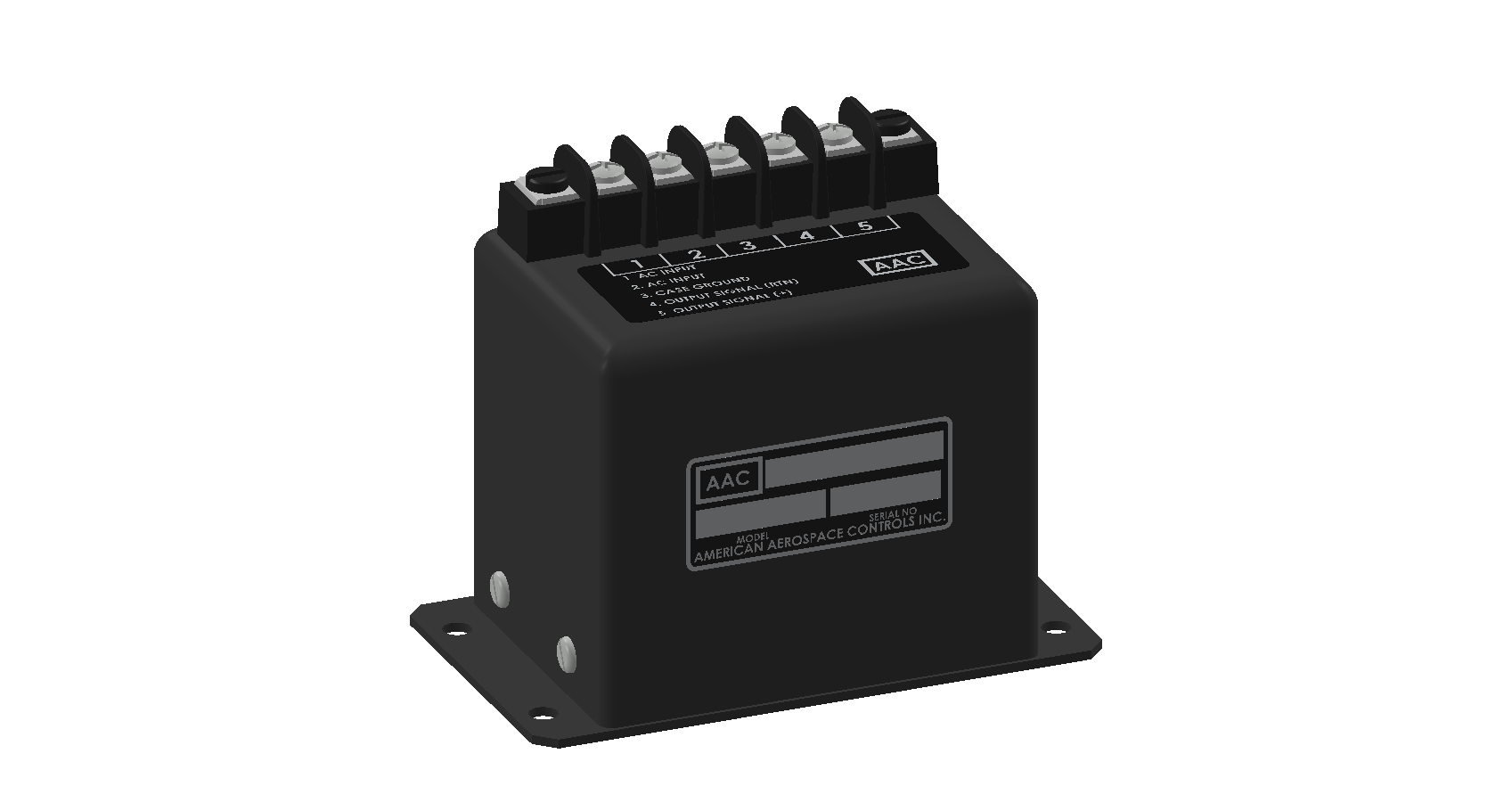

Model 105 is a suppressed AC Voltage Transducer that features an effective, accurate and reliable solution to measure AC voltage. It produces a fully isolated 0 to 5V DC output signal proportional to a preset input voltage range. The unit outputs “0V” at the lower preset level and “5V” at the higher level. It features ±0.5% accuracy and is specified to operate at 57 to 63Hz, over a temperature range from -40 to +85°C.

The 105 AC Voltage  Transducer is designed with a  powder coated steel housing, with the internal components encapsulated, creating a rugged and durable transducer.  The 105 Series comes standard with a barrier interface.

  •  Lab equipment voltage monitoring
  •  Industrial equipment voltage monitoring

Additional information

Weight 22 oz
Dimensions 3 × 3 × 2 in

Housing Material

Supply Type





Voltage Range

490V, 505V, 530V, 560V

Additional Info: Weight 20 oz. Max, Attitude: Works in any position.
