AC Current (RMS) Transducer 1006X


View 3D Image PDF

(note: requires 3D viewer)


Download Specifications

(note: requires Adobe Reader)


  • Easy Connectivity/ Simple Utilization
  • Isolated Measurement
  • Loop Power
  • 4-20mA Output
  • 5:1 Crest Factor Capability
  • ±0.5% Accuracy
  • Low Ripple/ 0.2% Typical
  • 1.50” Diameter Thru-hole
  • Reverse Polarity Protection
  • 100m-sec Response (10% to 90%)
  • 18 Standard Current Ranges

Product Description

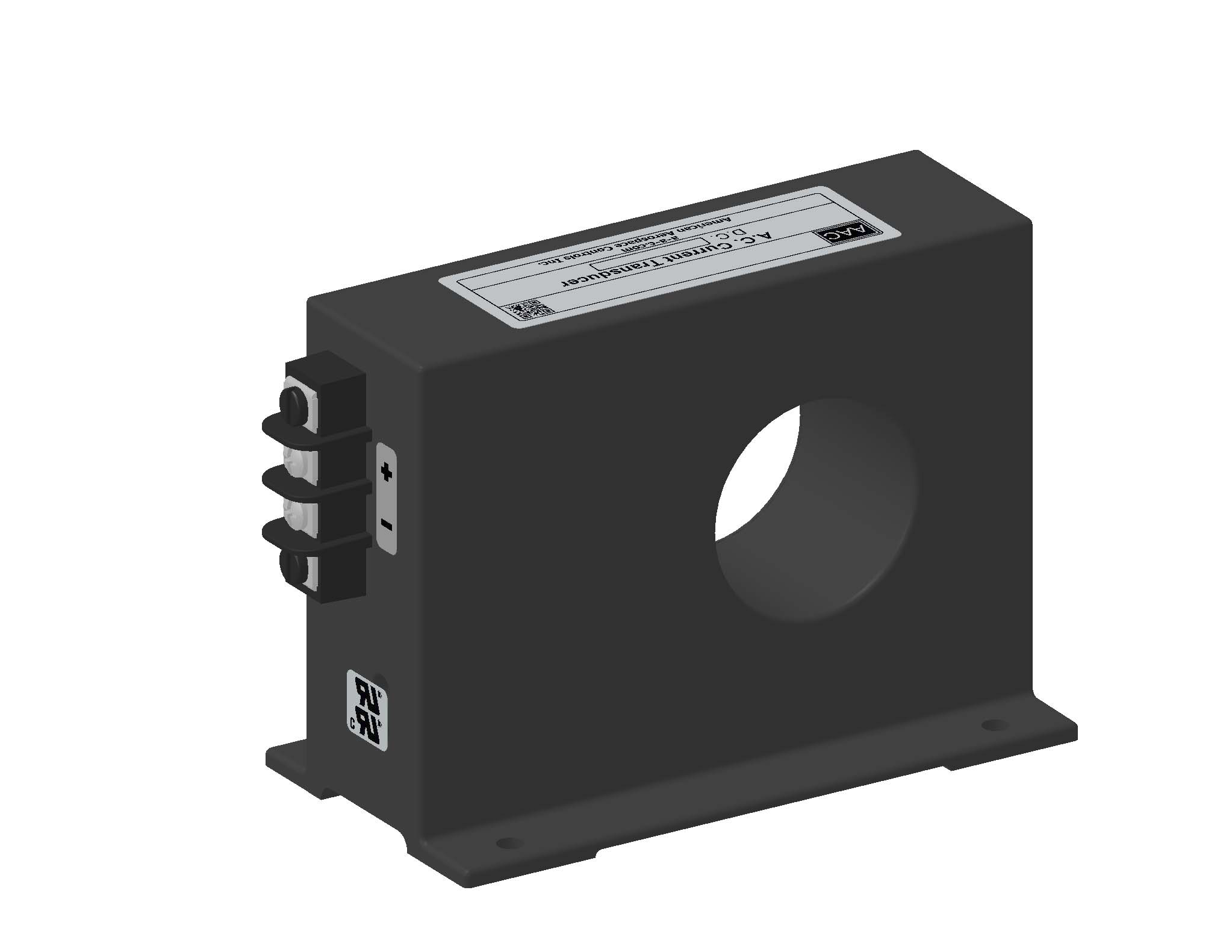

Model 1006X AC Current (RMS) Transducer provides an isolated 4-20mAdc output proportional to the AC input current. The transducers are operated in a two wire loop power configuration, with an input current range from 5Aac to 1200Aac and the transducers withstand, without performance degradation or damage, a continuous overload of 500Aac or twice the full-scale input current, whichever is greater, up to 1750Aac.

The 1006X Series delivers high performance accuracy over a temperature range from -40°C to +85°C and measures input current with a frequency range from 47 to 63Hz,  with Crest Factors up to 5. A 400Hz model is available.  The transducers are low powered (25mA typical current drain @ overload), operate with a supply voltage from +10 to +35Vdc and produces a 4-20mA output into a load resistance from 0 to 1400 Ohms.

The 1006X AC Current (RMS) Transducers are non-intrusive, come standard with a barrier interface, offer a large 1.5” (3.81cm) input thru-hole and are UL and CSA Recognized.

  • Lighting Monitoring
  • Motor Current Faults
  • Conveyor Belt Monitoring

Additional information

Weight 12 oz
Dimensions 3 × 3 × 2 in


Supply Type


Input Diameter

Supply Voltage

, , , ,

Housing Material

Current Range

, , , , , , , , , , , , , , , , , ,


Frequency Range

47 to 63Hz

Crest Factors


  • Attitude: Works in any position.
