AC Voltage Transducer 102M3

$549.00

View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



  • 4 voltage ranges
  • Isolated measurement
  • Operating temperature from -40°C to +85°C
  • 0.5% accuracy over temperature range
  • Powder coated finished housing
  • Self-powered
  • Suppressed voltage measurement

Product Description

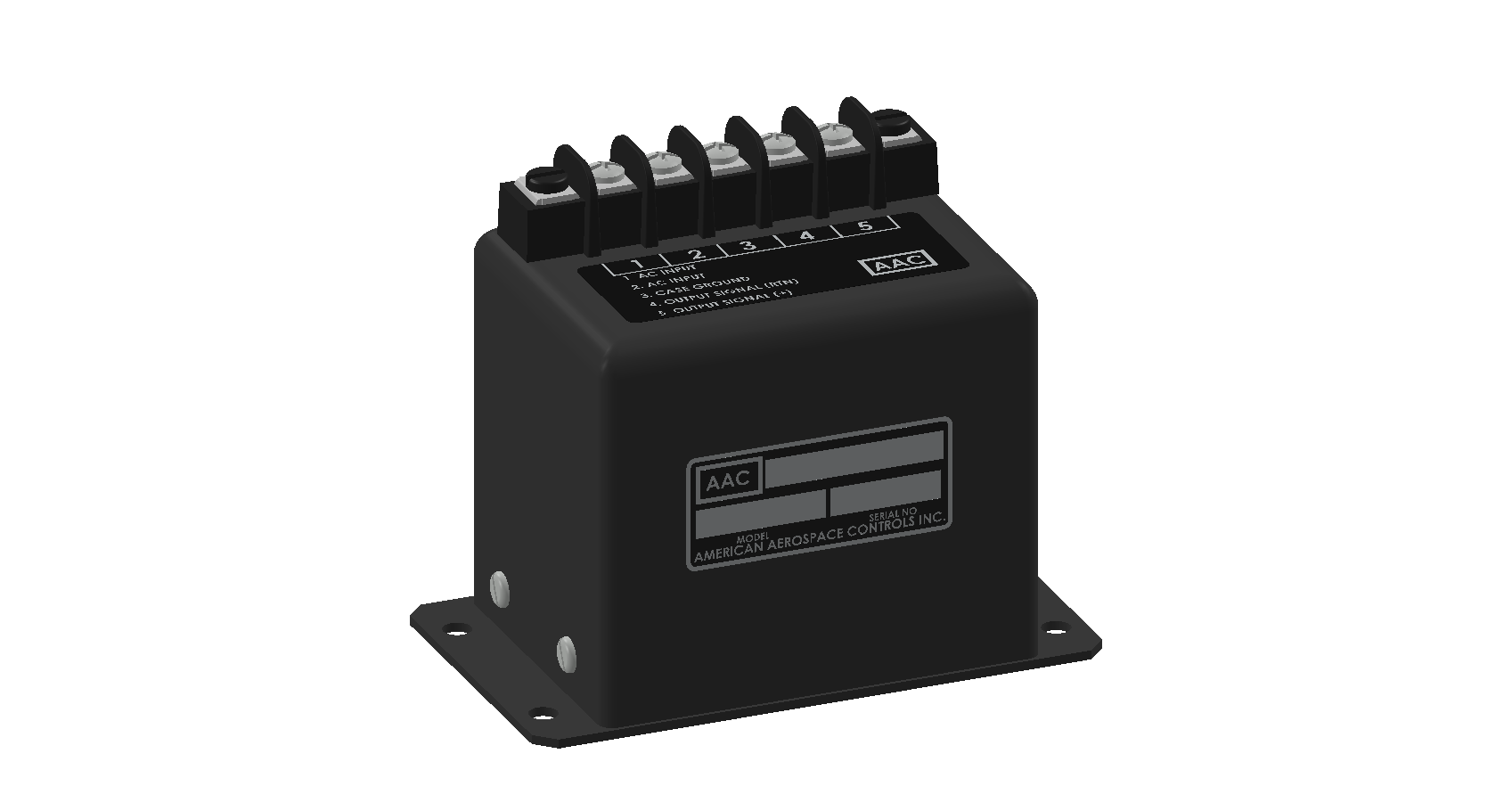

Model 102M3 is a suppressed AC Voltage Transducer that features an effective, accurate and reliable solution to measure AC voltage. It produces a fully isolated 0 to 5V DC output signal proportional to a preset input voltage range.  The unit outputs “0V” at the lower preset level and “5V” at the higher level. It features ±0.5% accuracy and is specified to operate at 340 to 440Hz, over a temperature range from -40°C to +85°C.

The 102M3 Series is constructed in a powder coated steel housing, with the internal components encapsulated, creating a rugged and durable transducer.  The unit is capable of  withstanding environments of moisture, humidity, vibration and shock.

The 102M3 AC Voltage Transducer comes standard with a barrier interface.

  • Lab equipment

Additional information

Weight 22 oz
Dimensions 3 × 3 × 2 in
Housing Material

Supply Type

Housing

Output

Measurement

Interface

Input

Voltage Range

118V, 130V, 175V, 225V, 340Hz to 440Hz

Frequency Range

340Hz to 440Hz

  • Attitude: Works in any position.
