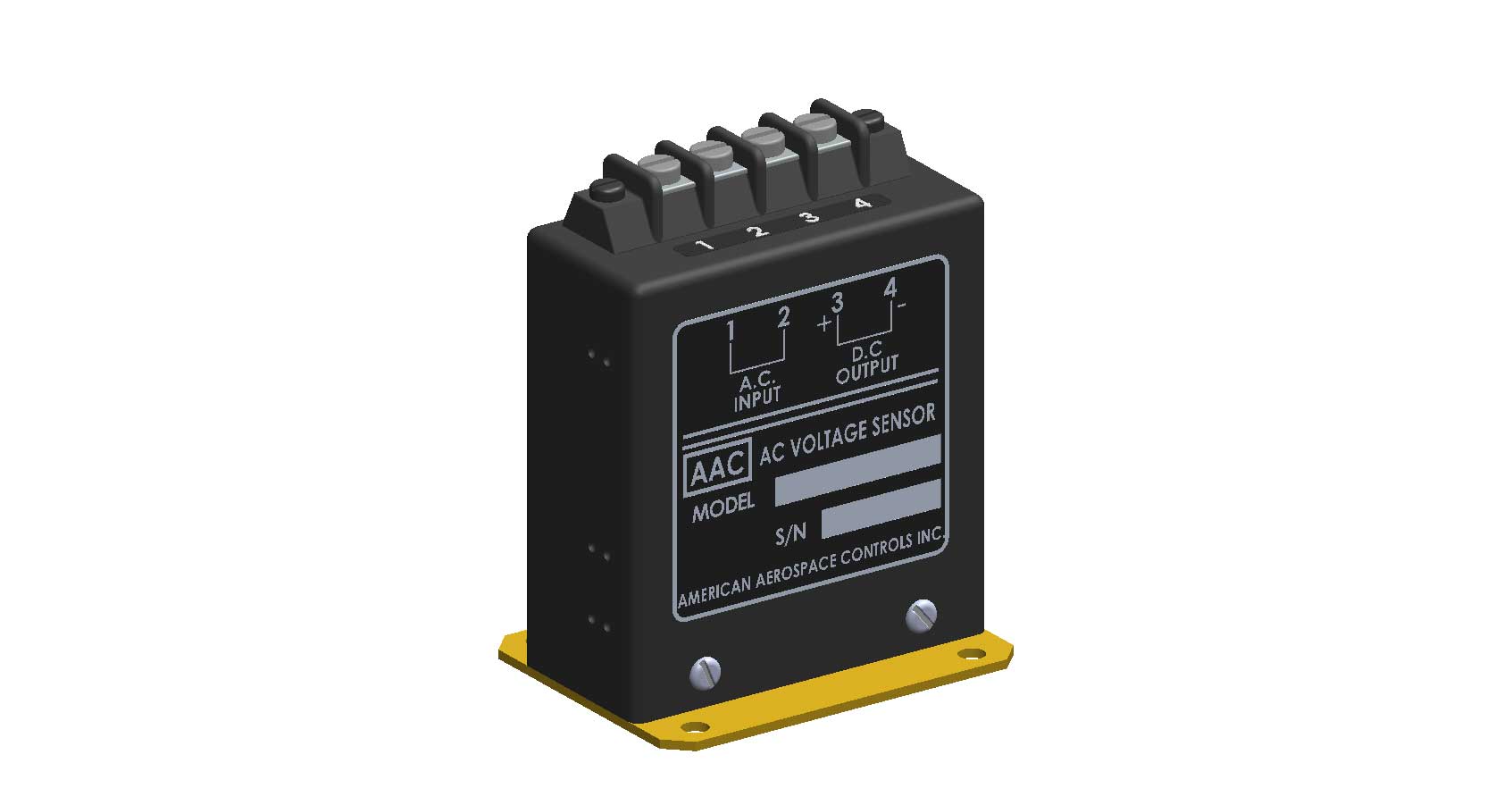

AC Voltage Transducer S190-108


Download Specifications

(note: requires Adobe Reader)


  • Cost effective
  • Isolated measurement
  • Self-powered
  • Powder coated finished housing


Product Description

Model S190-108 AC Voltage Transducer features an effective, accurate and reliable solution to measure AC voltage. It produces a fully isolated 0 to 10V DC output signal proportional to the input voltage, with an  accuracy of ±2% and is specified to operate from 47 to 63Hz.

The S190-108 AC Voltage Transducers are “self-excited” which means that the units do not require power to operate. The transducer has an input voltage range from 130V to 600V AC and comes standard with a barrier termination for quick installation.

  • Lab Equipment
  • Solar/ Renewable Energy Detection
  • Theft Detection Systems
  •  Grid Automation

Additional information

Weight 14 oz
Dimensions 3 × 3 × 2 in

Housing Material

Supply Type





Voltage Range

130V, 150V, 270V, 300V, 600V

Additional Info: Weight 10 oz. Max, Attitude: Works in any position.
