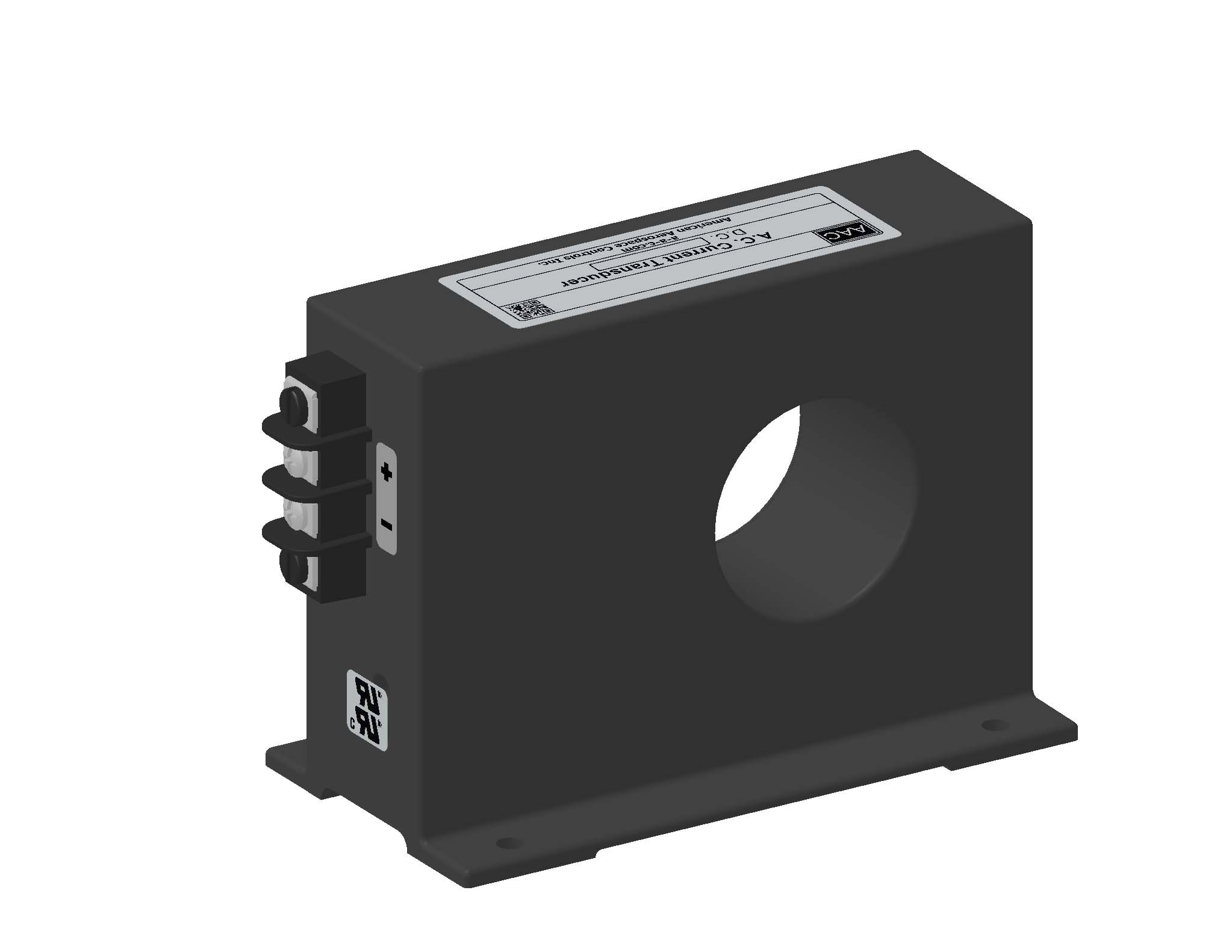

AC Current Transducer 1006

$178.00

View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



  • Easy Connectivity/ Simple Utilization
  • Isolated Measurement
  • Self-excited, no power required
  • ±0.5% Accuracy
  • 1.50” Diameter Thru-hole
  • Reverse Polarity Protection
  • ±0.1% Full-scale Repeatability
  • 20 Standard Current Ranges

Product Description

Model 1006 AC Current Transducer provides an isolated 0 to +5Vdc output proportional to the AC input current. The transducers are self-excited (no power required), with an input current range from 5A to 1200A and the transducers withstand, without performance degradation or damage, a continuous overload of 500Aac or twice the full-scale input current, whichever is greater.  The maximum output voltage at overload is 10Vdc, linear to 6Vdc (120% full-scale).

The 1006 Series delivers high performance accuracy over a temperature range from -40°C to +85°C and measures input current with a frequency range from 47 to 63Hz, a 400Hz model is available.

The 1006 AC Current Transducers are non-intrusive, come standard with a barrier interface, offer a large 1.50” (3.81cm) input thru-hole and are UL and CSA Recognized.

  • Lighting Monitoring
  • Motor Current Faults
  • Conveyor Belt Monitoring

Additional information

Weight 16 lbs
Dimensions 3 × 3 × 2 in
Current Range

, , , , , , , , , , , , , , , , , , ,

Measurement

Input

Interface

Output

Supply Type

Housing

Housing Material

Input Diameter

Frequency Range

400Hz – Available, 47 to 63Hz

  • Attitude: Works in any position.
