AC Voltage Transducer 101M3


View 3D Image PDF

(note: requires 3D viewer)


Download Specifications

(note: requires Adobe Reader)


  • Isolated measurement
  • Operating temperature from -40°C to +85°C
  • 0.5% accuracy over temperature range
  • Powder coated finished housing
  • Self-powered
  • Suppressed voltage measurement

Product Description

Model 101M3 is a suppressed AC Voltage Transducer that features an effective, accurate and reliable solution to measure AC voltage. It produces a fully isolated 0 to 5V DC output signal proportional to a preset input voltage range, 90 to 150Vac RMS. The unit outputs 0 at the lower preset level and 5V at the higher level. It features ±0.5% accuracy and is specified to operate at 60Hz, over a temperature range from -40 to +85°C.

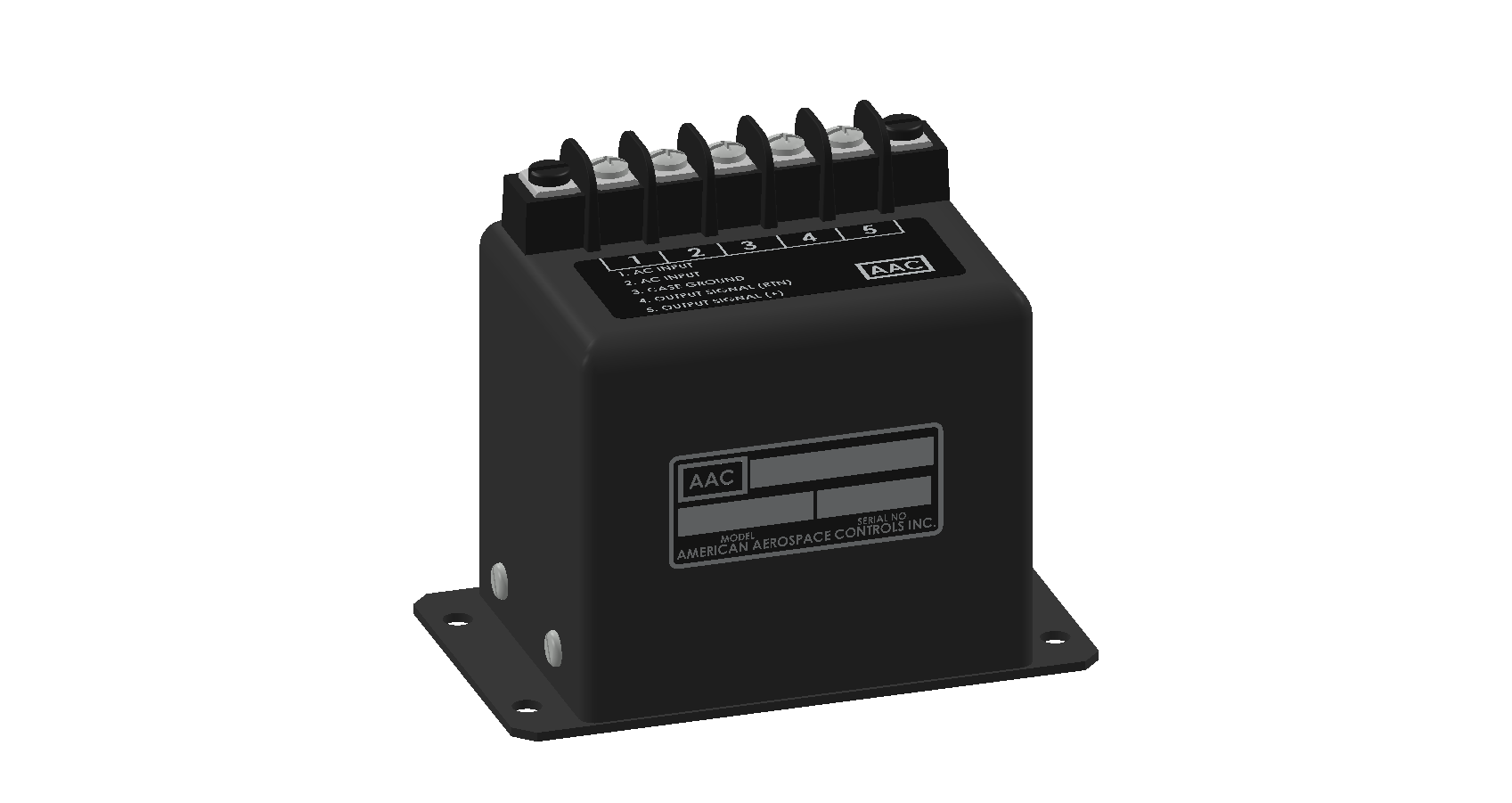

The 101M3 AC Voltage Transducer is constructed in a powder coated steel housing, with the internal components encapsulated, creating a rugged and durable transducer, withstanding environments of moisture, humidity, vibration and shock. The 101M3 Series comes standard with a barrier interface.

  • Lab equipment voltage monitoring
  • Industrial equipment voltage monitoring

Additional information

Weight 22 oz
Dimensions 3 × 3 × 2 in
Housing Material

Supply Type






Voltage Range


Frequency Range


Additional Info: Weight 20 oz. Max

Attitude: Works in any position.
