AC Current (RMS) Transducer S714

$963.00$1,000.00

View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



  • Isolated Measurement
  • ±0.5% Accuracy
  • 4:1 Crest Factor Capability
  • Moisture and Humidity Resistant
  • Very Low Ripple (5mVRMS Maximum)
  • Low Power (25mA Maximum)
  • Reverse Polarity & Short Circuit Protection
  • Output Transient Protection (±60V < 100m-sec)
  • 14 Standard Current Ranges

Product Description

Model S714 AC Current (RMS) Transducer provides an isolated 0 to +5Vdc output proportional to the AC RMS input current. The transducers have an input current range from 5Aac to 600Aac, and the transducers withstand, without performance degradation or damage, a continuous overload of 500Aac or twice full-scale, whichever is greater.

The S714 Series delivers high performance accuracy over a temperature range from -40°C to +85°C and measures input current with a frequency range from 360 to 440Hz, with Crest Factors up to 4.  The transducers are low powered, operate with a supply voltage from +14Vdc to +32Vdc, produce low output ripple and have output transient protection.  The unit’s powder coated aluminum housing, with the internal components encapsulated, creates a rugged and durable transducer, withstanding environments of moisture, humidity, vibration, shock and altitude.

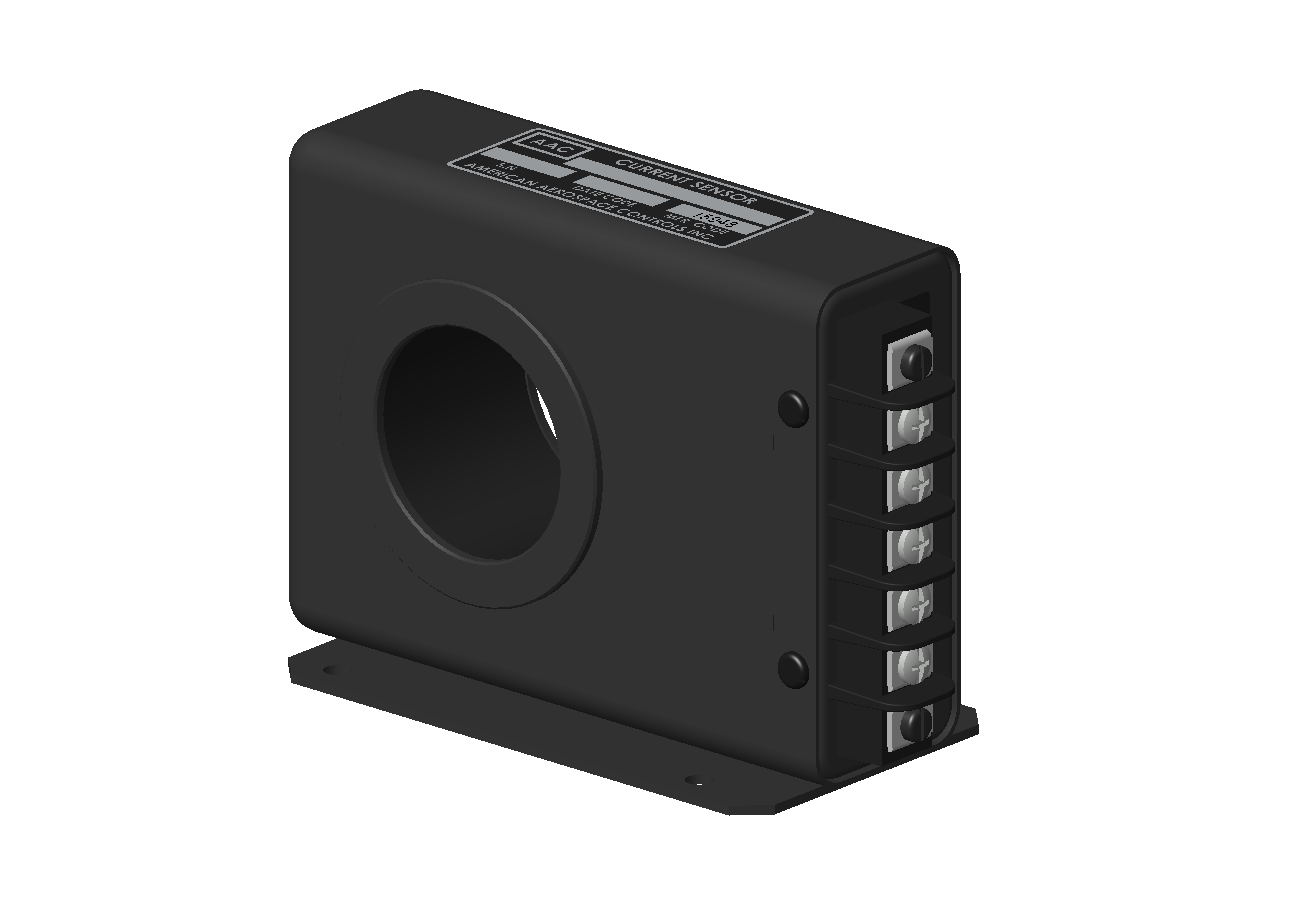

The S714 AC Current Transducer comes standard with a 1.38” diameter thru-hole, are non-intrusive and available with a barrier or connector interface, with the connector option available with mating connector.  A 60Hz model is also available.

  • Measure Motor Current
  • Measure Heating Elements
  • Monitor and Detect Fault Currents

Additional information

Weight 26 oz
Dimensions 3 × 3 × 2 in
Input

Measurement

Current Range

, , , , , , , , , , , , ,

Interface

,

Output

Supply Voltage

Housing

Housing Material

Input Diameter

Supply Type

Frequency Range

360 to 440Hz, 60Hz – Available

Crest Factor

4:1

  • Attitude: Works in any mounting position.
  • Mate Connector: TYPE PT06A-10-6S or equivalent mating connector.
