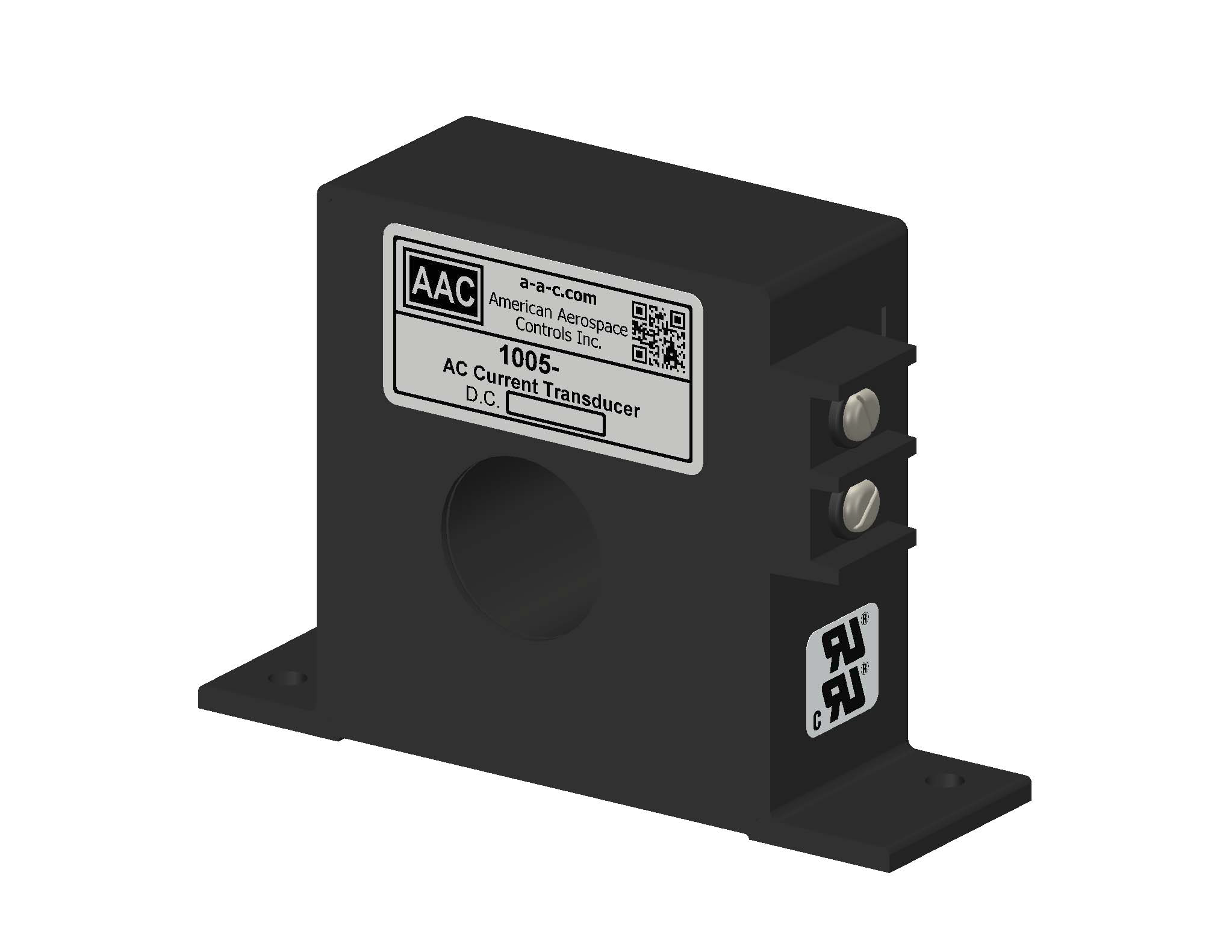

AC Current Transducer 1005


SKU: 1005 Category: Tags: ,
View 3D Image PDF

(note: requires 3D viewer)


Download Specifications

(note: requires Adobe Reader)


  • Easy Connectivity/ Simple Utilization
  • Isolated Measurement
  • Self-excited, no power required
  • ±1.0% Accuracy Models 10A and Up/ ±2.0% 5A and lower
  • 0.75” Diameter Thru-hole
  • ±0.1% Full-scale Repeatability
  • Light Weight 5oz Max
  • 15 Standard Current Ranges

Product Description

Model 1005 AC Current Transducer provides an isolated 0 to +5Vdc output proportional to the AC input current. The sensors are self-excited (no power required), with an input current range from 2Aac to 300Aac and the transducers withstand, without performance degradation or damage, a continuous overload of 200Aac for ranges 2Aac to 100Aac and 400Aac for ranges 150Aac to 300Aac.

The 1005 AC Current Transducer delivers accuracy over a temperature range from -20°C to +70°C and measures input current with a frequency range from 50 to 60Hz.   The transducers are non-intrusive, come standard with a barrier interface and are UL and CSA Recognized

  • Lighting Monitoring
  • Motor Current Faults
  • Conveyor Belt Monitoring

Additional information

Weight 4 oz
Dimensions 3 × 3 × 2 in
Current Range

, , , , , , , , , , , , , ,





Supply Type


Housing Material

Input Diameter

Frequency Range

47 to 63Hz

  • Attitude: Works in any position.
