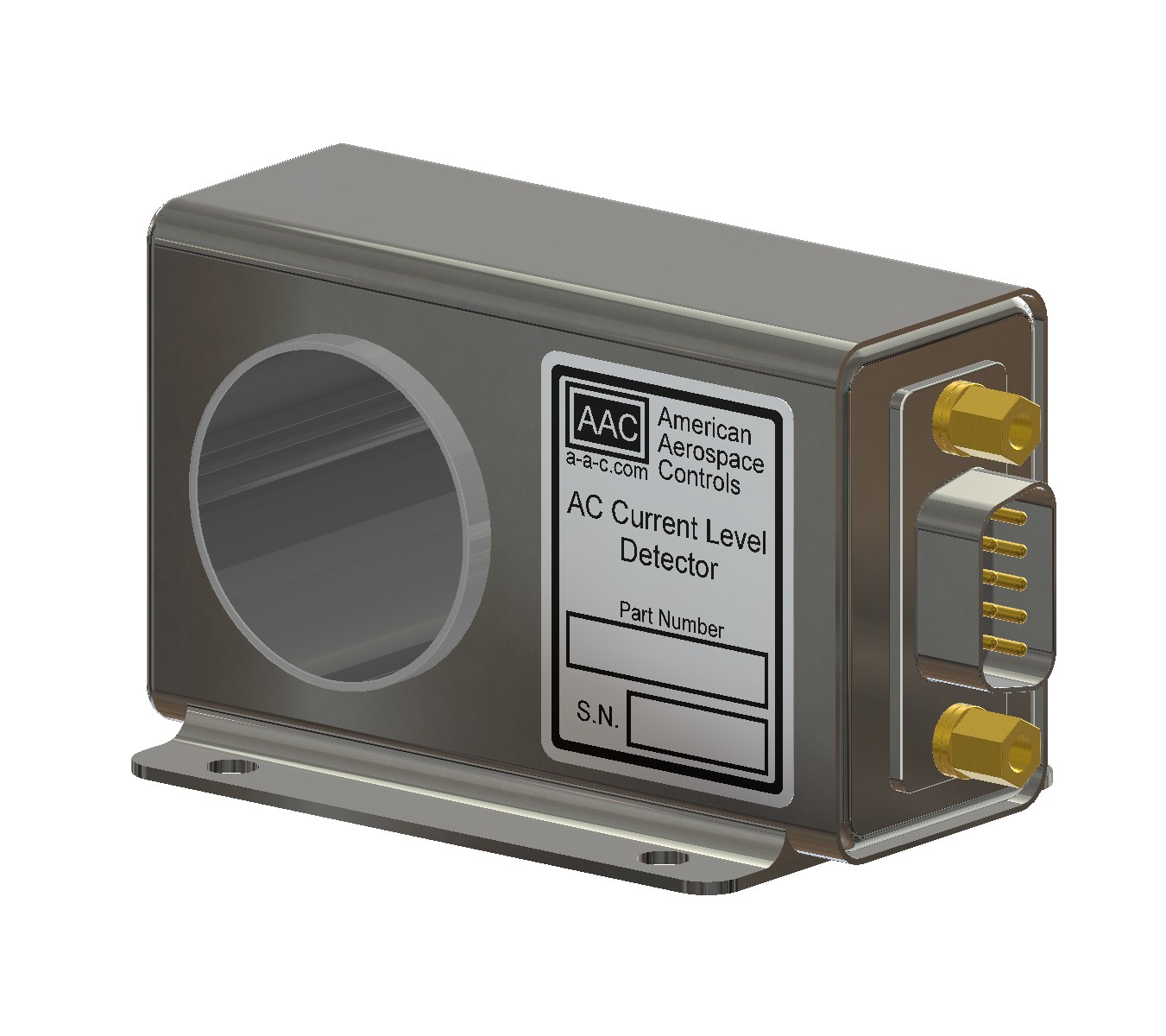

AC Current Detector S1028

$1,146.00

View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



Isolated Measurement

3 point isolation

Military Temperature Range

Compact/ Faraday Box Construction

Hermetically Sealed

±1.0% Trip Point Accuracy

RTCA/DO-160G & MIL-STD-810G Compliant (Reference spec sheet for Section & Category)

100 m-second Response (110% of the trip point)

Reverse Polarity Protection

Finish: Fuse Tin Plate

Weight 9 oz. Max

Attitude: Works in any mounting position,

Product Description

Model S1028 AC Current Level Detector provides an isolated relay output proportional to the AC input current, with the relay closing at the applicable trip point. The detectors have an input current range from 1Aac to 250Aac, with a frequency range from 360Hz to 900Hz and the detectors withstand, without performance degradation or damage, a continuous overload of 500Aac and a current surge of 1000Aac for 6 cycles.

The S1028 Series delivers performance accuracy over a temperature range from -55°C to +85°C, operates with a supply voltage from +20.5Vdc to +32.2Vdc and with a high precision internal reference guaranteeing repeatable operation. The unit’s brass alloy housing, is hermetically sealed, with the internal components encapsulated creating a rugged and durable transducer, withstanding environments of moisture, humidity, vibration, shock and altitude.

The S1028 AC Current Detector comes standard with a 1.00” (2.54 cm) thru-hole, is light weight and is available with a 9 Pin D-Sub connector. Optional mating connector available.

Aerospace Flight Current Monitoring (Qualified: Propeller & Helicopter Platforms)

Metallurgical Processing Equipment Current Monitoring

Laboratory Equipment Current Monitoring



Additional information

Weight 10 oz
Dimensions 3 × 3 × 2 in
Interface

Output

Input

Measurement

Supply Type

Supply Voltage

, ,

Housing

Housing Material

Input Diameter
