- Available in 1A to 300A
- 3 point isolation
- Adjustable trip point
- Available with or without adjustable time delay
- Powered from 115Vac line
- 50-400Hz operation
- ¾ inch pass-thru hole
- Rugged plastic housing
- LED Trip status indicator

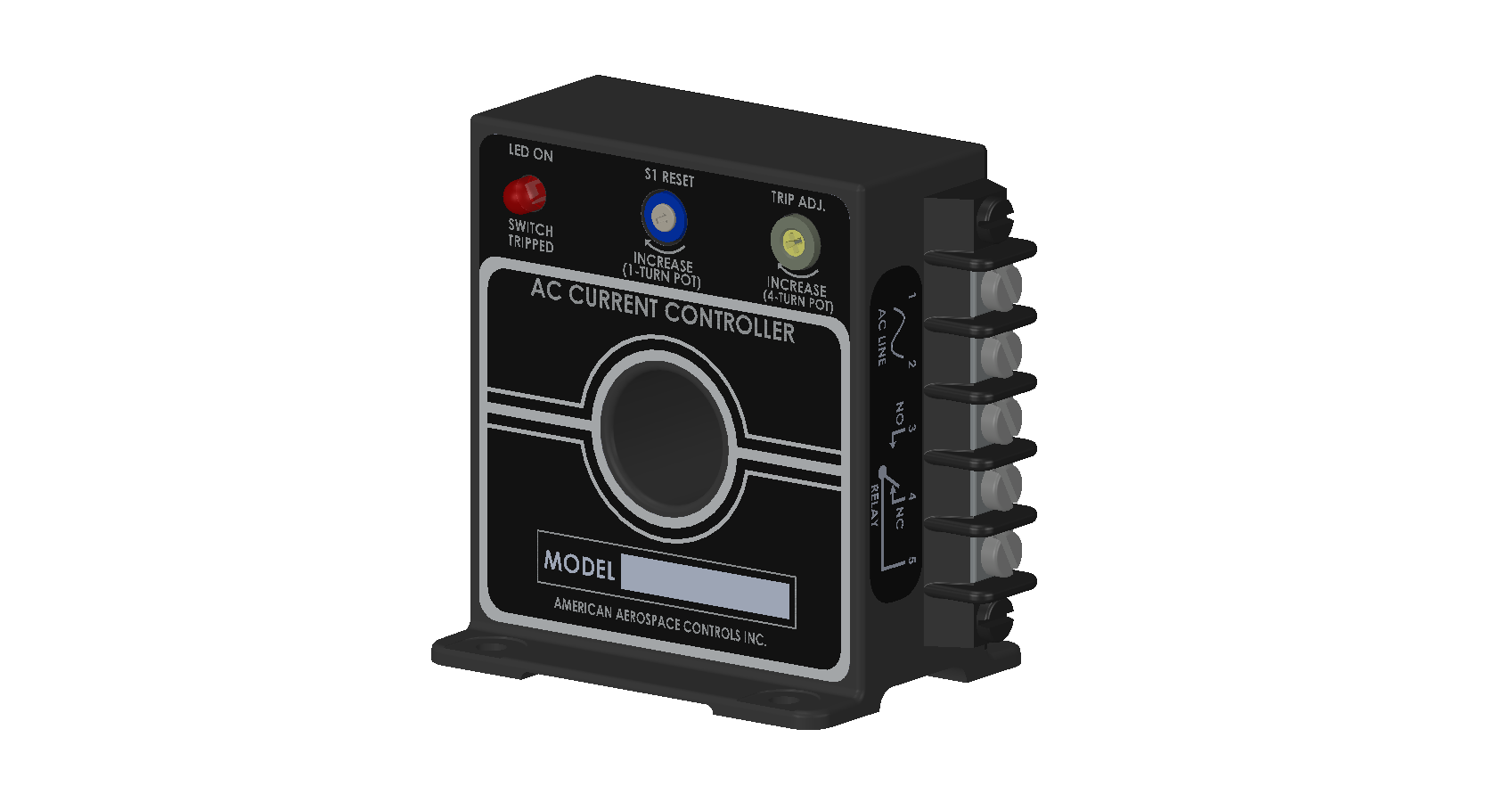

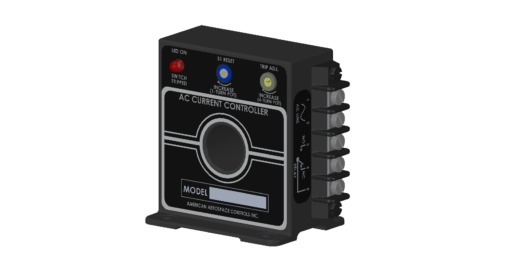

AC Current Detector 882
$209.00
Product Description
Model 882 AC Current Detector provides an effective and accurate solution to monitor AC current. A conductor wire is routed through a ¾ inch thru-hole which provides non-intrusive and isolated means to measure desired current. After the measured input current reaches the applicable trip point, the time delay circuit gets activated, the relay trips and an indicator LED light is illuminated. A precision internal reference guarantees repeatable operation.
The 882 AC Current Detector has an input current range from 1Aac to 300Aac, with a frequency range from 50 to 400Hz. The detector delivers performance accuracy over a temperature range from -20°C to +70°C and are powered with a voltage from 105Vac to 125Vac. The adjustable trip point makes the detector adaptable for many applications. The 882 comes standard in a plastic molded housing with a barrier interface. A Time Delay option is available, reference Outline Specification 700-882 (Download Specifications Link). Type Time Delay Option in “Please Specify Application” text field.
- Monitor electrical heaters coils
- Monitor electrical motors
Additional information
Weight | 8 oz |
---|---|
Dimensions | 3 × 3 × 2 in |
Current Range | 100A, 10A, 150A, 15A, 1A, 200A, 20A, 250A, 2A, 300A, 50A, 5A |
Interface | |
Input | |
Output | |
Housing | |
Supply Voltage | |
Housing Material | |
Input Diameter | |
Supply Type | |
Frequency Range | 50 to 400Hz |
- Attitude: Works in any position.
