DC Current Detector S58

$402.00

Download Specifications

(note: requires Adobe Reader)



  • Isolated Measurement
  • Response: 1m-second
  • Automatic Reset
  • Easy Connectivity

Product Description

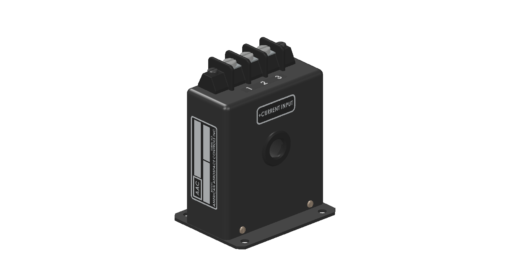

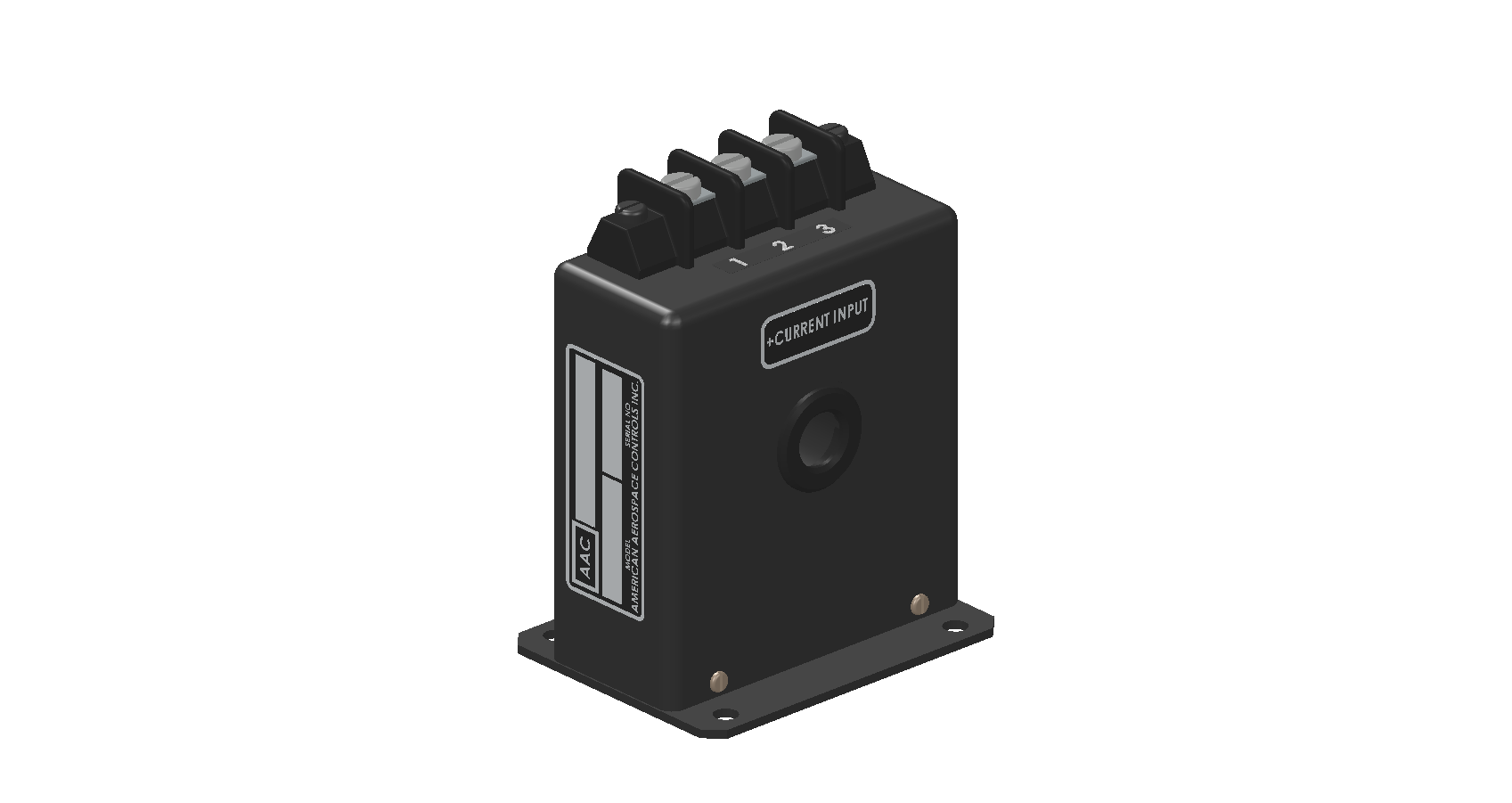

Model S58-800 DC Current Level Detector features a simple and effective solution to monitor DC current. A conductor wire is routed through a 3/8 inch thru-hole which provides non-intrusive and isolated means to measure desired current. After input current reaches 200ma or above (10A Max), the output resistance increases from 1k-Ohm to 40K-Ohm.

The S58-800 Series delivers accuracy over a temperature range from 0°C to +70°C and operates with a supply voltage from +22.8Vdc to +30.4Vdc. The unit’s powder coated steel housing, with the internal components encapsulated creates a rugged and durable detector.

The S58-800 DC Current Level Detectors come standard with a barrier interface.

  • Ground Fault Indications
  • Laboratory Equipment Monitoring
  • Leakage Current Detection

Additional information

Weight 14 lbs
Dimensions 3 × 3 × 2 in
Output

Measurement

Current Range

Supply Type

Housing

Input Diameter

Supply Voltage

Housing Material

Interface

Input

Response

1 m-second

Attitude: works in any direction or position

Weight: 14 oz. Maximum
