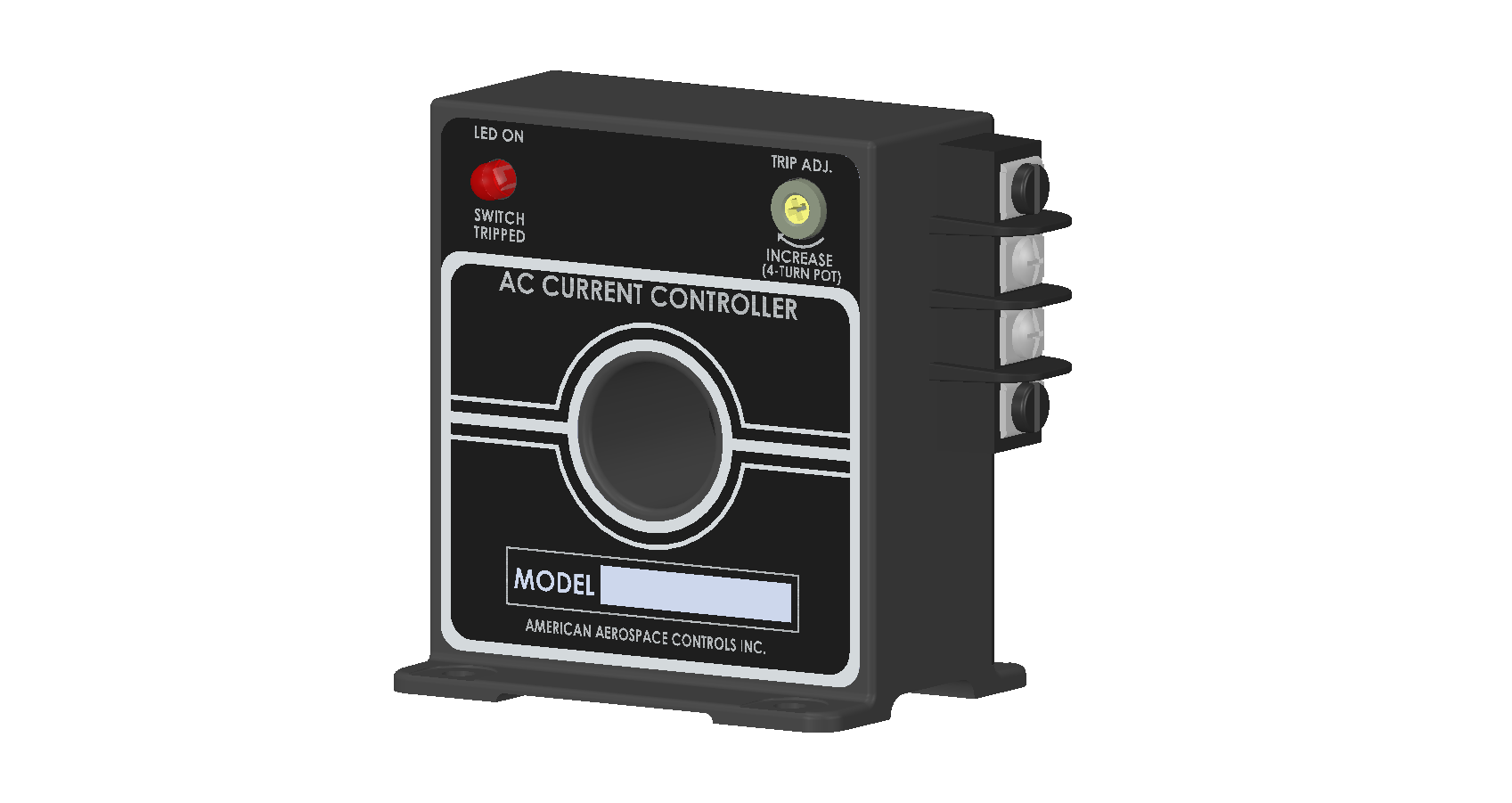

AC Current Detector 880B

$138.00

SKU: 880B Category: Tags: ,
View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



  • Available from 2A to 250AAC
  • Input/output isolation
  • Adjustable trip point
  • Light weight
  • Automatic reset
  • Self-powered
  • 50-400Hz operation
  • Ā¾ inch pass-thru hole
  • Rugged plastic housing
  • LED Trip status indicator

Product Description

Model 880B AC Current Level Detector provides an effective and accurate solution to monitor AC current. A conductor wire is routed through a Ā¾ inch hole which provides non-intrusive and isolated means to measure desired current. After the measured input current reaches the set trip point, the relay trips and an indicator LED light is illuminated. A precision internal reference guarantees repeatable operation.

The 880B AC Current Detector has an input current range from 2Aac to 250Aac, with a frequency range from 50 to 400Hz.Ā  The unit delivers performance accuracy over a temperature range from -20Ā°C to +70Ā°C and are “self excited”, requiring no power to operate.Ā  The adjustable trip point makes theĀ detectorĀ adaptable for many applications. TheĀ 880B comes standard in a plastic molded housingĀ with a barrier interface.





  • Monitor electrical heaters coils
  • Monitor electrical motors

Additional information

Weight 8 oz
Dimensions 3 × 3 × 2 in
Current Range

, , ,

Input

Interface

Measurement

Output

Housing

Housing Material

Input Diameter

Frequency Range

50 to 400Hz

  • Attitude: Works in any position
