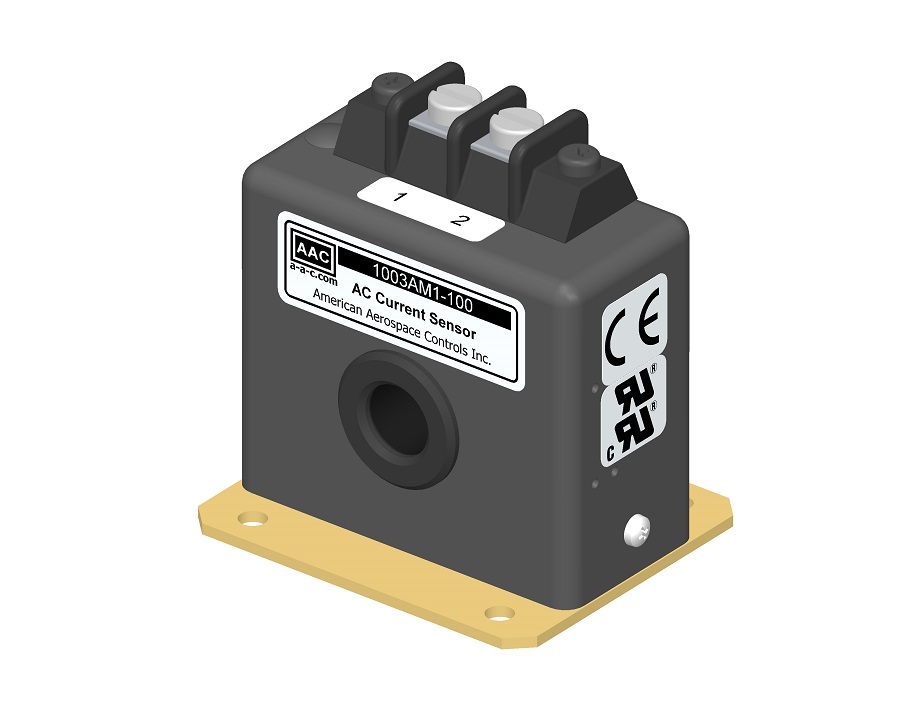

AC Current Transducer 1003AM1

$144.00$148.00

SKU: 1003AM1 Category: Tags: ,
View 3D Image PDF

(note: requires 3D viewer)



Download Specifications

(note: requires Adobe Reader)



  • Easy Connectivity/ Simple Utilization
  • Isolated Measurement
  • Self-excited, no power required
  • ±3.0% Accuracy
  • ±0.5% Full-scale Repeatability
  • Light Weight
  • 13 Standard Current Ranges

Product Description

Model 1003AM1 AC Current Transducer provides an isolated 0 to +5Vdc output proportional to the AC input current. The transducers are self-excited (no power required), with an input current range from 2A to 100A, with a frequency range from 57 to 63Hz and the transducers withstand, without performance degradation or damage, a continuous overload of 250Aac.

The 1003AM1 Series delivers accuracy over a temperature range from -55°C to +85°C and the unit’s powder coated steel exterior creates a rugged and durable transducer.

The 1003AM1 AC Current Transducers are light weight, non-intrusive and come standard with a barrier interface.

  • Lighting Monitoring
  • Motor Current Faults
  • Conveyor Belt Monitoring

Additional information

Weight 5 lbs
Dimensions 3 × 3 × 2 in
Input Diameter

Supply Type

Housing

Housing Material

Output

Measurement

Current Range

, , , , , , , , , , , , ,

Interface

,

Input

  • Attitude: Works in any position
